When choosing an enclosure for electrical or industrial applications, understanding the difference between NEMA 3 and NEMA 4 enclosures is crucial. Nema rated enclosures are designed to provide specific protections and comply with National Electrical and Safety standards.
All reputable electrical enclosures are UL NEMA rated, meaning they have a specific NEMA rating that defines their level of protection against environmental factors such as dust, water, and debris. In this guide, we’ll compare the many levels of NEMA 3 vs NEMA 4 enclosures, their features, and their best use cases.

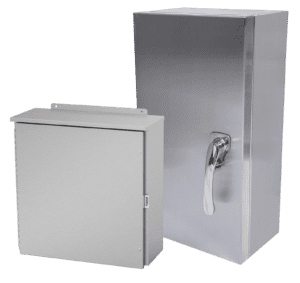

What is a NEMA 3 Enclosure?
NEMA 3 enclosures are designed for outdoor use and provide the same protection as NEMA 1 enclosures by preventing unauthorized access to the components they house. They also offer protection against:
- Falling dirt and debris
- Rain, sleet, and snow
- External ice formation
NEMA 3R enclosures offer a step up from NEMA 3 ratings and are particularly important for safeguarding sensitive electronic equipment from environmental factors such as rain and dust. These enclosures offer a degree of weather resistance but are not completely sealed, allowing ingress water to escape through the bottom of the enclosure.
They also feature a hydro-phobic gasket around the door to help keep water and dust from entering the enclosure. They are ideal for applications where protection from precipitation and airborne particles is required but not submersion or direct hose-downs.
NEMA 3S enclosures offer additional protection above NEMA 3 and 3R by remaining fully operational, even when coated in ice. This is very important for extreme weather environments when access to electrical equipment may be needed during icy conditions.
Common Applications for NEMA 3 Electrical Enclosures: Outdoor Use
- Outdoor junction boxes and wiring enclosures for protecting electrical components
- Utility equipment and electrical control panels for various outdoor applications
- Telecommunications and low-voltage power distribution
What is a NEMA 4 Enclosure?
NEMA 4 enclosures provide all the protection of NEMA 3 enclosures but with an enhanced waterproof and dustproof seal against splashing water. This hydro-phobic seal makes NEMA 4 enclosures fully watertight and protective against extreme weather and even washdowns in industrial environments They are built to withstand:
- Hose-directed water spray and splashing
- Heavy rain, sleet, and snow
- External ice formation
- Windblown dust and debris
For environments requiring additional corrosion resistance, NEMA 4X enclosures are recommended. Due to the wet conditions that NEMA 4 enclosures face, rust and corrosion can break down the enclosure, sacrificing its ability to protect the electronics. NEMA 4X enclosures are made of corrosion resistant materials like polycarbonate and stainless steel which provide long-term protection even in salt water, wash-down, and corrosive environments.
Common Applications for NEMA 4 Boxes
These enclosures are essential for protecting sensitive electronic equipment from environmental hazards, ensuring their functionality and safeguarding against potential damage.
- Food and beverage processing facilities (washdown areas)
- Marine and offshore equipment
- Outdoor electrical enclosures exposed to heavy rain or hose spray
- Industrial control panels and automation systems.
Corrosion Resistance for NEMA 3 and NEMA 4 Enclosures
Due to the high presence of water in NEMA 3 and NEMA 4 environments, corrosion resistance can be a concern. Prolonged exposure to water and humidity can cause enclosure materials to break down and rust, compromising the protection of electrical controls.
For higher corrosion resistance, choosing a NEMA 3RX, 3SX or 4X rated enclosure is recommended. NEMA 4X rated enclosures are made with high quality materials like polycarbonate and stainless steel that resist rust and corrosion, ensuring long-term protection for electrical components.
Which Enclosure is Right for You?
If your application requires basic outdoor protection for electrical equipment from rain, sleet, and airborne debris, a NEMA 3 electrical enclosure may be sufficient. However, if your enclosure needs to withstand icy conditions, high humidity, or washdown conditions, a NEMA 3SX or NEMA 4X box is the better choice.
At Integra, we offer a wide range of high-quality NEMA 3SX and NEMA 4X electronic enclosures designed for various industries, from telecommunications to industrial automation. Whether you need a durable outdoor electrical enclosure or a watertight control panel box, we have the right solution for you.
Find the Perfect Enclosure Today
Integra Enclosures offers a wide range of NEMA rated enclosures for any industry and expert advice to help you find the perfect fit. Contact us today to find the best enclosure to meet your needs.
