Designers and engineers know that a box is never “just a box.” Things like dimensional specs, material requirements, and certification standards influence how and where an enclosure is used. However, enclosure accessories are a defining factor that isn’t always appreciated.
Every consideration, from ventilation to latch type to mounting, affects how an enclosure performs over its lifetime. And while the outer shell is essential for protection against contaminants and tampering, accessories often determine whether a system is easy to maintain, safe to access, and shielded from excessive heat.
Effective enclosures require the outer shell and accessories to work together to keep the elements out and ensure the sensitive equipment inside can work reliably, day in and day out.
Enclosure Fans Actively Manage Heat for a Long Lifespan
Electronics generate heat. In closed spaces, temperatures can quickly rise above ambient levels. When internal conditions exceed the rated working limits, thermal overloading sets in, shortening equipment life and degrading performance.
Forced-air systems in enclosures packed with PLCs, servo drives, VFDs, and power distribution gear actively control internal temperature, keeping everything within safe operating limits. This prevents costly downtime and extends the life of expensive industrial equipment.
Fan systems come in fixed-speed and variable-speed configurations, each suited to different applications. Fixed-speed fans work well in enclosures with consistent heat loads — they’re simple, reliable, and cost-effective when cooling demands don’t fluctuate much. Variable-speed fans, on the other hand, excel in applications with changing thermal conditions, fine-tuning their output to match actual cooling needs and reducing energy consumption during lighter periods. Some systems can be integrated with automated temperature controllers, allowing the volume of air being moved to be automatically adjusted.

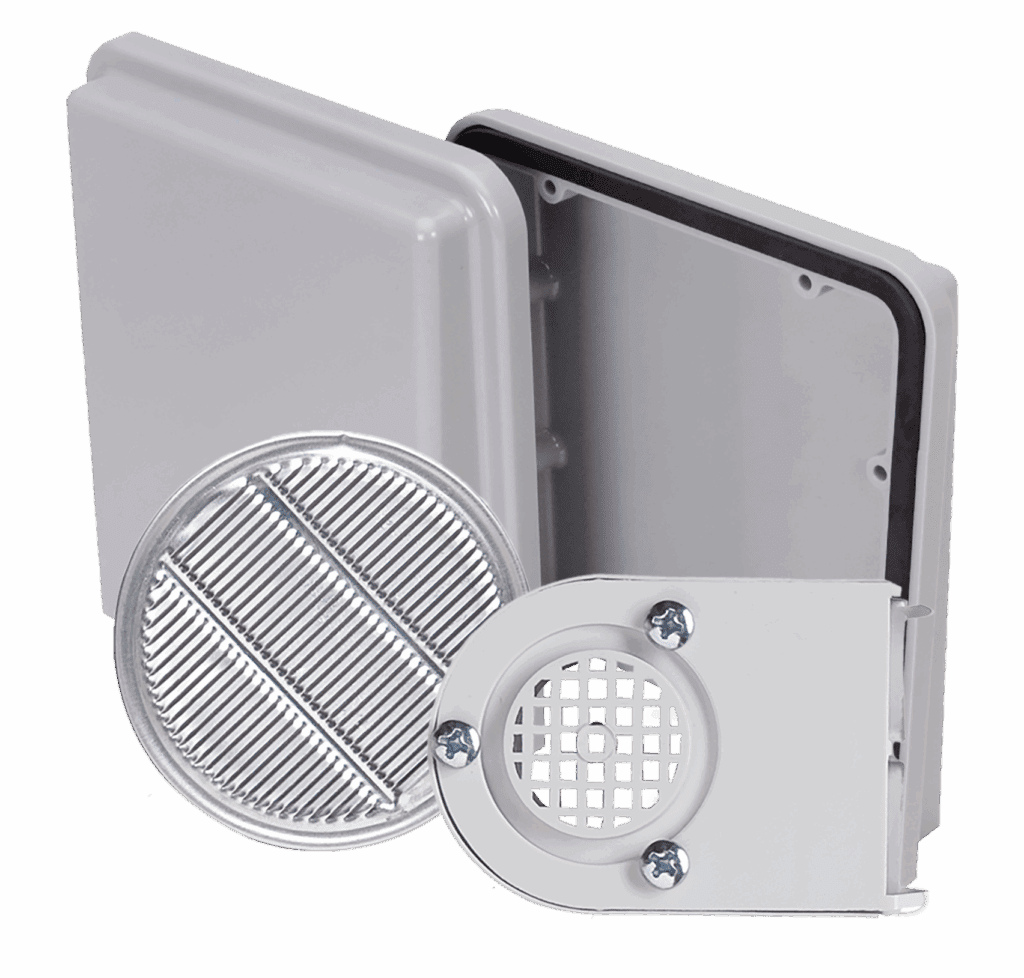

Vents Offer Proper Airflow Without the Need for Power
Not every enclosure needs forced air circulation, though. In some installations, enclosure accessories can offer passive ventilation in the form of vents or louvered openings is enough to regulate internal conditions.
Rather than using powered fans or blowers to move air, passive systems rely on natural convection to expel heat and humidity and draw in fresh, cool air through strategically placed intake and outlet paths. Some systems, especially those with ePTFE-rated filters and barriers, can maintain ingress protection without obstructing the flow of air and pressure regulation.
Passive ventilation requires very little maintenance, and the absence of a power supply means there’s no added operational costs. With no moving parts, fewer components can degrade or fail, making it an effective, low-risk, energy-efficient option in areas where internal temperature loads are minimal, or in hard-to-reach areas without easy access. Still, it’s important to consider the impacts of vent placement, size, and filtering requirements to ensure the equipment inside receives the amount of airflow required.
Security and Environmental Protection with Lockable Latches
Access points are a potential weak point for even the most well-designed enclosure. Unsecured doors or panels are a potential liability that can lead to accidental exposure, tampering, or environmental ingress. Lockable latches prevent unauthorized access and maintain a weather-tight seal from water and airborne particulate contamination.
Different types of latches suit different types of installations. Cam locks, quarter-turn latches, and paddle handles, for example, offer varying levels of security, ergonomic ease, and environmental sealing. Some systems are compatible with padlocks or electronic access controls, ensuring only qualified people can open the box and handle the equipment inside.
Beyond security concerns, lockable latches help maintain protection against contamination. When panels are closed and secured, seals stay engaged, ensuring moisture and debris can’t work their way inside.
Mounting Brackets Keep Your Enclosures Where They’re Needed
Every enclosure needs to be secured to something, but good mounting systems do more than hold boxes in place. Wall brackets, pole mounts, and equipment frames keep boxes in the right place and ensure that dynamic forces and environmental factors won’t compromise performance.
Proper mounting isn’t just about hanging an enclosure, though. It helps reduce the effects of vibration from nearby machinery, accommodates and offsets thermal expansion without creating stress, and spreads weight evenly across the surface for a secure, long-lasting installation.
Good mounting brackets also support flexibility and convenience. Modular bracket systems that match the specific installation and enclosure type make it possible to install and reposition boxes without reworking internal components. This is especially useful during system expansions or upgrades, and process changes.
Mounting brackets are only a fraction of the total system cost, but their impact on reliability cannot be underestimated. Poor mounting can cause the enclosure to detach, damaging both the mounting surface and the system. Choosing quality mounting systems and enclosure accessories offers long-term system integrity and performance.

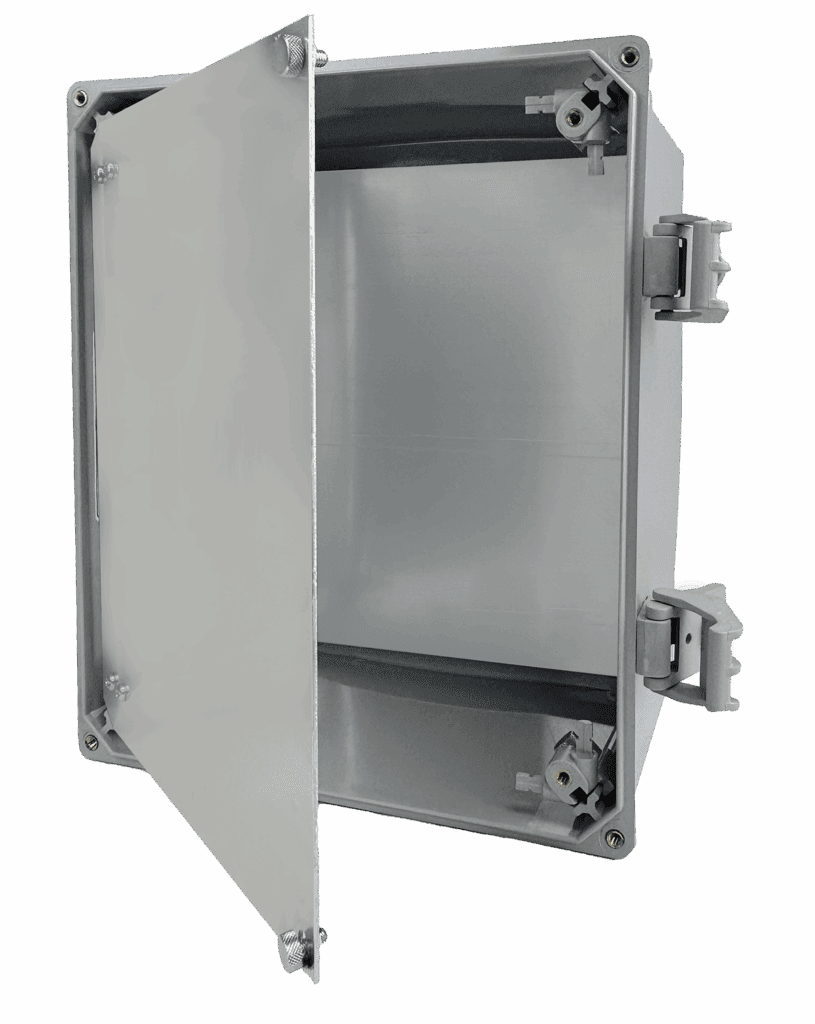

Maintaining Organization with Mounting Panels
The exterior of an enclosure is the first — and sometimes only — thing that is appreciated, but the value of an effective box starts from within. Mounting panels, also called back panels, provide a flat, secure surface for electrical components, keeping wires tidy, critical equipment accessible, and effectively utilizing the available space.
The benefits of high-quality panels go deeper than organization, though. The materials they’re built with can contribute to enclosure performance. Panels made of steel or aluminum help direct heat away from high-power components, while composite options provide greater chemical resistance and electrical insulation when needed. Panel size and machining can be customized to fit tight industrial spaces, automation cabinets, or data control enclosures, ensuring every component has its place.
When the value of back panels is fully understood and leveraged, clutter is reduced, airflow is improved, and servicing electrical equipment is less of a chore. In short, mounting panels aren’t just convenient. They’re critical enclosure accessories that support efficiency, reliability, and longevity across every enclosure application.
Enclosure Accessories Define Performance
Enclosure accessories aren’t add-ons. They shape how well an enclosure performs over its lifetime. From thermal management systems that prevent equipment failures, to security hardware that protects assets and personnel, to organization systems that simplify maintenance, every element contributes to a box’s reliability, efficiency, and safety.
The best installations treat enclosures and accessories as integrated systems, not separate components. This approach ensures optimal performance, maximizes equipment life, and delivers the reliability that industrial applications require.
