H10082HCF IP66 Outdoor Rated Electronics Enclosure
● Polycarbonate Enclosures, Premium Line
● UL/cUL NEMA TYPE 4X IP66
● Mounting Flange
● Screw Closure
● Screw/Hinged
● Clear cover
● Enclosure size: 10x8x2

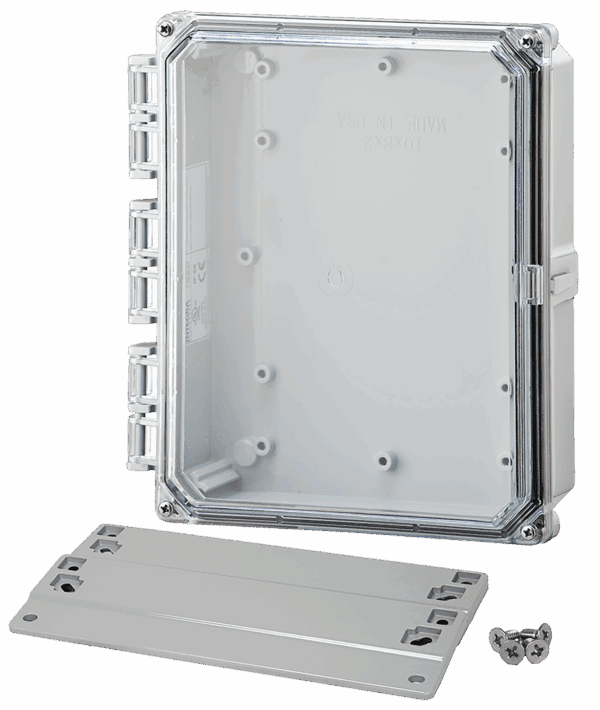

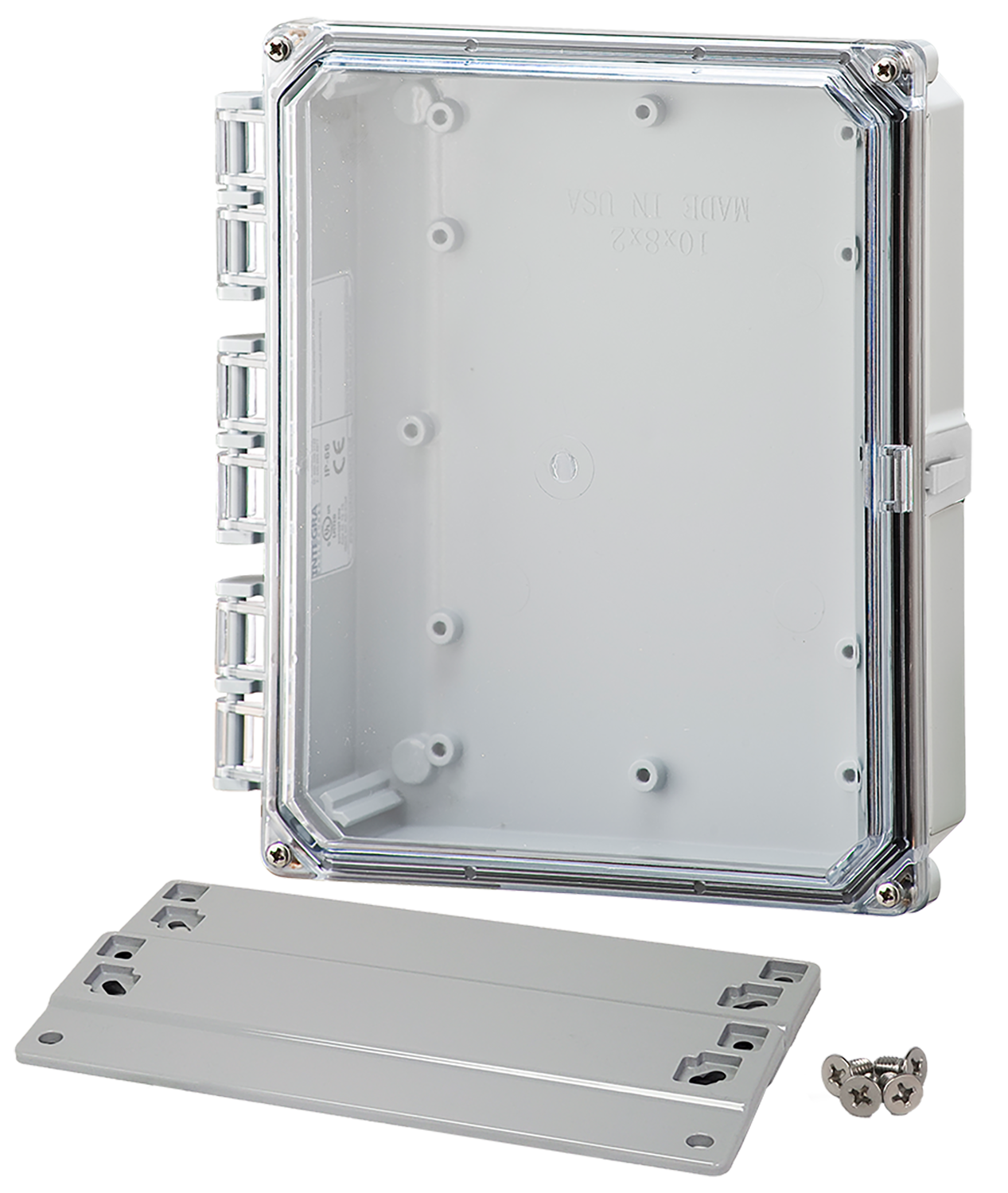

The H10082HCF is a high-impact polycarbonate hinged enclosure from the Premium Line, featuring a clear cover and mounting flanges (four screws included). With a UL/cUL NEMA TYPE 4X IP66 protection rating, it is designed for both indoor and outdoor applications. The enclosure measures approximately 9.36 x 12.68 x 3.47 inches externally and 8 x 10 x 2.54 inches internally, with a wall thickness of 0.15 inches and a weight of 2.62 lbs. Made from UV-resistant polycarbonate, it comes in a light gray color with a gloss finish. The enclosure supports flexible interior mounting through brass inserts in the corner bosses and includes a hydro-phobic urethane gasket for reliable sealing. The list price is $224.00, with OEM and quantity discounts available upon request.
Protection Rating: UL/cUL NEMA TYPE 4X IP66
$224.00
Call factory for OEM and quantity discounts
*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*
If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as
Aluminum Panel for 10" x 8" x 2" Enclosures
Panel Size: 8.75 x 6.88 inches
Includes Four Mounting Screws
Note that the ABP-1082 will only work on the Premium 10"x8"x2" Enclosures.
Steel Back Panel for 10" x 8" x 2" Premium Enclosure
Panel Dimensions: 6.8 x 8.75 inches.
Includes Four Mounting Screws
White Powder Coat Finish
PVC Back Panel for Premium 10" x 8" x 2" Enclosure.
Panel Size: 8.75 x 6.8 inches.
Includes Four Mounting Screws
Note that the SBP-1082 will only work on the Premium 10" x 8" x 2" Enclosures.
Aluminum Swing Panel Kit for 10x8 enclosure
Kit Contains Aluminum Swing Panel and all hardware
Aluminum Panel for 10x8 Swing Kit
Steel Swing Panel Kit for 10" x 8" Premium Enclosure
Panel Dimensions: 8.75 x 6.88 inches.
Kit contains Steel Swing Panel and all hardware
White Powder Coat Finish
Steel Swing Panel for 10" x 8" x 2" Premium Enclosure
Panel Dimensions: 8.75 x 6.8 inches.
Pre-Drilled
White Powder Coat Finish
Note that the SBP-1082 will only work on the Premium 10" x 8" x 2" Enclosures.
Opaque replacement cover for 10" x 8" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.
Opaque replacement cover for 10" x 8" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.
Clear replacement cover for 10" x 8" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.
Clear replacement cover for 10" x 8" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.
DIN Rail Kit for 8" Premium Enclosure (2 rails, 4 screws)
For 8" Wide Premium Enclosure - 2" pole
Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 8" Wide Premium Enclosure - 3" pole
Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 8" Wide Premium Enclosure - 4" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 8" Wide Premium Enclosure - 12" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Mounting Feet Kit - Premium Line-Gray
Includes Four Mounting Screws
Mounting Feet Kit - Stainless Steel
Includes Four Feet and Mounting Hardware
Mounting Flange Kit 8"
Includes Four Mounting Screws
Dimensions
(Mounting Feet/Flange, Hinge and Latch included in dimensions)
Approximate External Dimensions – 9.36 x 12.68 x 3.47 inches
Approximate Internal Dimensions – 8 x 10 x 2.54 inches
Wall Thickness – 0.15 inch
Weight – 2.62 lbs
General
Color – Light Gray with gloss finish
Material – Polycarbonate
Country of Origin – United States
Construction
Internal Mounting options – Brass inserts in corner bosses
External Mounting Style – Mounting Flange
Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket
3rd Party Ratings
UL-50/c-UL Listed (files#E229365, #E207562)
NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13
IP ratings – IP66
Mechanical and Thermal
Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)
Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)
Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)
Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)
Temperature Range = -40 to 265 °F
Flammable/UV Ratings
Flame Rating = UL, 5VA. (Test Spec. UL-94)
Outdoor UV Exposure = F1. (Test Spec UL)
