Premium Line

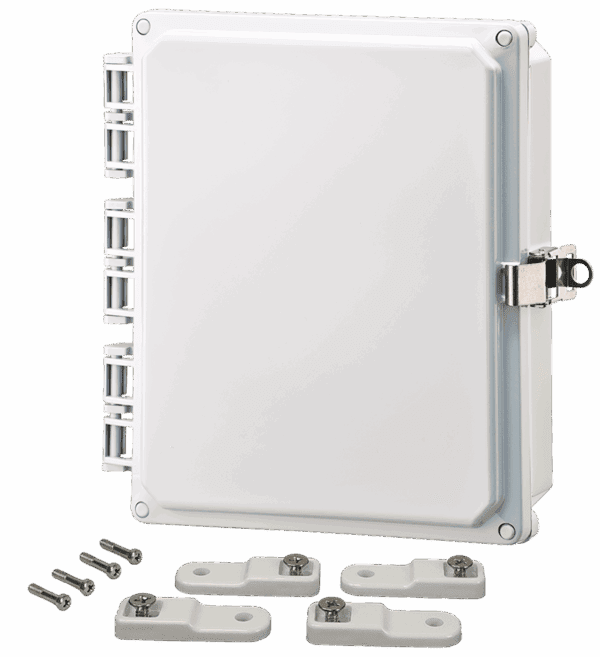

H10082HLL IP66 Outdoor Rated Electronics Enclosure

Part Number:

H10082HLL

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 4X IP66

Mounting Feet

Stainless Steel Locking Latch

Hinged

Opaque cover

Enclosure size: 10x8x2

The H10082HLL Premium Line IP66 Outdoor Rated Electronics Enclosure offers superior protection with its high-impact polycarbonate construction and opaque cover. This 10x8x2 enclosure features a stainless steel locking latch, hinged design, and mounting feet, ensuring secure and reliable use in demanding environments. With UL/cUL NEMA TYPE 4X and IP66 ratings, it is ideal for safeguarding electronics against harsh conditions.

Protection Rating: UL/cUL NEMA TYPE 4X IP66

List Price:

$224.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-1082
    ABP-1082

    Aluminum Panel for 10" x 8" x 2" Enclosures

    Panel Size: 8.75 x 6.88 inches

    Includes Four Mounting Screws

    Note that the ABP-1082 will only work on the Premium 10"x8"x2" Enclosures.

    $ 50
  • SBP-1082
    SBP-1082

    Steel Back Panel for 10" x 8" x 2" Premium Enclosure
    Panel Dimensions: 6.8 x 8.75 inches.
    Includes Four Mounting Screws
    White Powder Coat Finish

    $ 87
  • PVCBP-1082
    PVCBP-1082

    PVC  Back Panel for Premium 10" x 8" x 2" Enclosure.

    Panel Size: 8.75 x 6.8 inches.

    Includes Four Mounting Screws

    $ 62

Swing Out Panels

  • ABP-108-USOPK
    ABP-108-USOPK

    Aluminum Swing Panel Kit for 10x8 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 107
  • ABP-108USP
    ABP-108USP

    Aluminum Panel for 10x8 Swing Kit

    $ 50
  • SBP-108-USOPK
    SBP-108-USOPK

    Steel Swing Panel Kit for 10" x 8" Premium Enclosure
    Panel Dimensions: 8.75 x 6.88 inches.
    Kit contains Steel Swing Panel and all hardware
    White Powder Coat Finish

    $ 198
  • SBP-1082USP
    SBP-1082USP

    Steel Swing Panel for 10" x 8" x 2" Premium Enclosure
    Panel Dimensions: 8.75 x 6.8 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 83

Replacement Lid

  • H108CHO-RPL
    H108CHO-RPL

    Opaque replacement cover for 10" x 8" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 73
  • X108CHC-RPL
    X108CHC-RPL

    Clear replacement cover for 10" x 8" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 74

Din Rails

  • DIN8
    DIN8

    DIN Rail Kit for 8" Premium Enclosure (2 rails, 4 screws)

    $ 44

Pole Mount Kit

  • PMKG-28
    PMKG-28

    For 8" Wide Premium Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 108
  • PMKG-38
    PMKG-38

    For 8" Wide Premium Enclosure - 3" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 122
  • PMKG-48
    PMKG-48

    For 8" Wide Premium Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 126
  • PMKG-128
    PMKG-128

    For 8" Wide Premium Enclosure - 12" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 158

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 29
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 47
  • MFLK8
    MFLK8

    Mounting Flange Kit 8"

    Includes Four Mounting Screws

    $ 32

Vents & Fan Shroud Kits

  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 28
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 30

Dimensions

(Mounting Feet/Flange, Hinge and Latch included in dimensions)

Approximate External Dimensions – 10.20 x 12.68 x 3.47 inches

Approximate Internal Dimensions – 8 x 10 x 2.54 inches

Wall Thickness – 0.15 inch

Weight – 2.51 lbs


General

Color – Light Gray with gloss finish

Material – Polycarbonate

Country of Origin – United States


Construction

Internal Mounting options – Brass inserts in corner bosses

External Mounting Style – Mounting Feet

Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket


3rd Party Ratings

UL-50/c-UL Listed (files#E229365, #E207562)

NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13

IP ratings – IP66


Mechanical and Thermal

Instrumented Dart Impact @ 73°F,  565 in-lb.

Falling Ball Impact @ 73° 900 in/lb. Test Spec. UL-746

Deflection Temperature @264 psi, 270 Deg. F, Test Spec. ASTM D648

Modulus of Elasticity 340 ksi, Test Spec. ASTM D790

Temperature Range, -40 to 265 Deg. F


Flammable/UV Ratings

Flame Rating Ð UL, 5VA. Test Spec. UL-94

Outdoor UV Exposure, F1. Test Spec UL

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H10082HLL PDF 10x8x2 Premium Specifications Integra Enclosures Install Sheet Premium UL Certification
