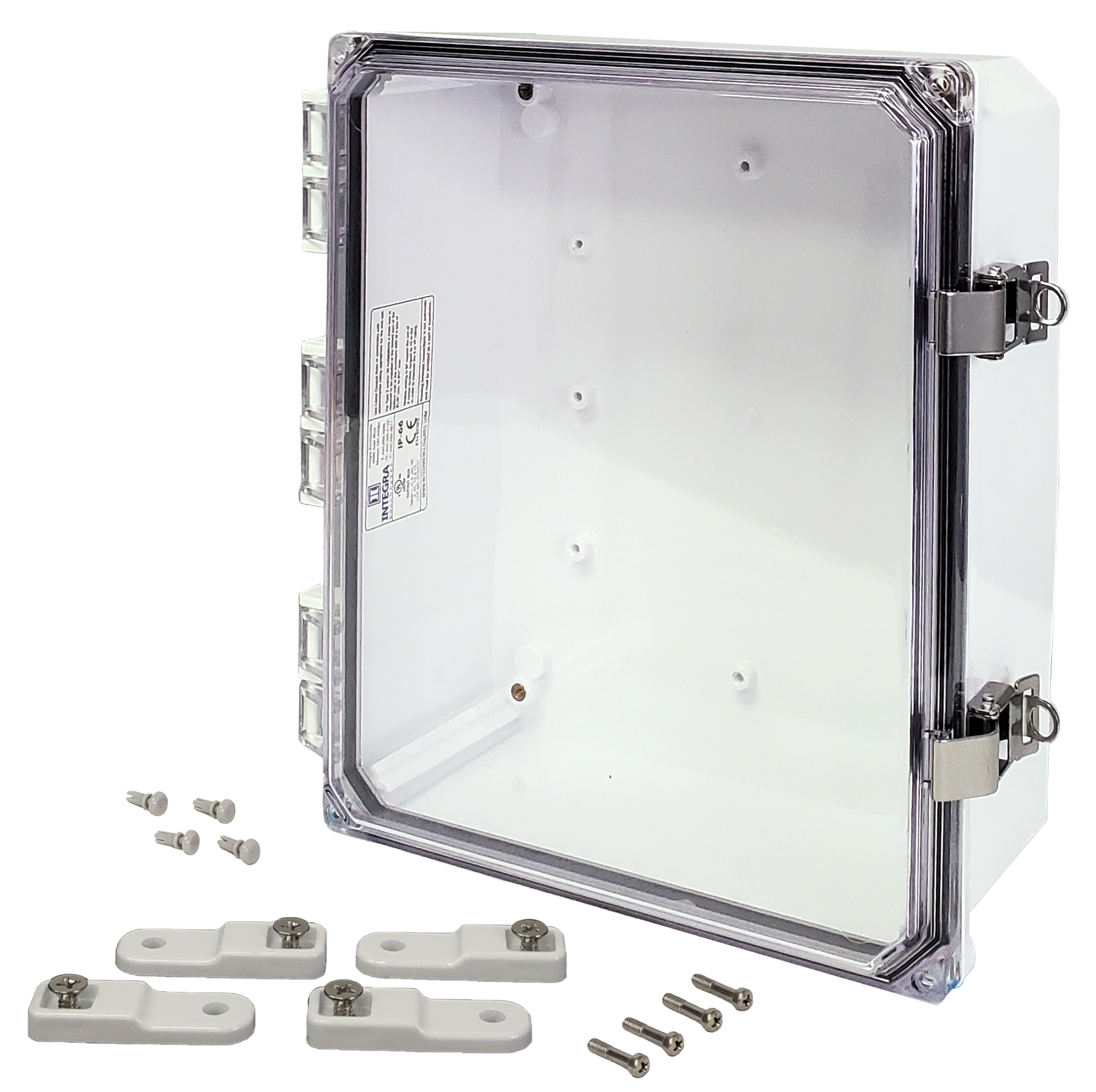

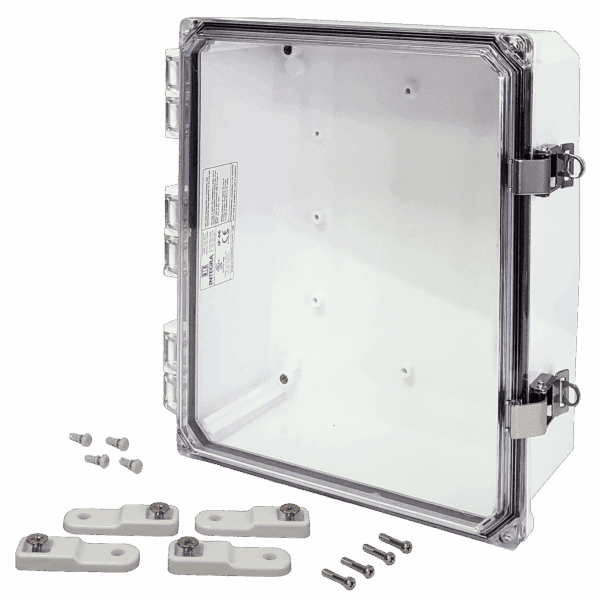

H12104HCLL IP66 Outdoor Rated Electronics Enclosure
● Polycarbonate Enclosures, Premium Line
● UL/cUL NEMA TYPE 4X IP66
● Mounting Feet
● Stainless Steel Locking Latch
● Hinged
● Clear cover
● Enclosure size: 12x10x4
The Premium Line H12104HCLL polycarbonate enclosure is designed with a clear cover, providing a durable and weather-resistant solution for housing electrical components. Made from high-impact, UV-resistant polycarbonate, it features a stainless steel locking latch and mounting feet for secure installation. This hinged enclosure offers a UL/cUL NEMA TYPE 4X and IP66 rating, ensuring protection against harsh weather and dust. The light gray color with a gloss finish enhances visibility, while the unique Integra adjustable depth “T-Rail” mounting system allows for flexible internal configurations. It is perfect for various outdoor and industrial applications, offering robust protection and easy access.
Protection Rating: UL/cUL NEMA TYPE 4X IP66 | Impact Rating: IK10
Price range: $305.00 through $341.00
Call factory for OEM and quantity discounts
*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*
If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as
Aluminum Panel for 12" x 10" Enclosure
Panel Size: 10.75 x 8.88 inches
Includes Four Mounting Screws
Steel Back Panel for 12" x 10" Premium Enclosure
Panel Dimensions: 10.88 x 8.88 inches
Includes four mounting screws
White Powder Coat Finish
PVC Back Panel for Premium 12" x 10" Enclosure
Panel Size: 10.75 x 8.88 inches
Includes Four Mounting Screws
Aluminum Swing Panel Kit for 12x10 enclosure
Kit Contains Aluminum Swing Panel and all hardware
Aluminum Panel for 12x10 Swing Kit
Steel Swing Panel Kit for 12" x 10" Premium Enclosure
Panel Dimensions: 10.88 x 8.88 inches.
Kit contains Steel Swing Panel and all hardware
White Powder Coat Finish
Steel Swing Panel for 12" x 10" Premium Enclosure
Panel Dimensions: 10.88 x 8.88 inches.
Pre-Drilled
White Powder Coat Finish
PVC swing panel kit for Impact 12" x 10" Enclosure
Panel Size: 10.88 x 10.88 inches
Kit contains PVC Swing Panel and all hardware
Opaque replacement cover for 12" x 10" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included
Clear replacement cover for 12" x 10" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.
DIN Rail Kit for 10" Premium Enclosure (2 rails, 4 screws)
For 10" Wide Enclosure - 2" pole
Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 10" Wide Enclosure - 3" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 10" Wide Enclosure - 4" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 10" Wide Enclosure - 12" pole
This kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Mounting Feet Kit - Premium Line-Gray
Includes Four Mounting Screws
Mounting Feet Kit - Stainless Steel
Includes Four Feet and Mounting Hardware
Mounting Flange Kit 10"
Includes Four Mounting Screws
Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)
Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)
Fan Shroud Vent Filter Kit Gray
To make this a Forced Air solution look for KIT-FAN part numbers.
Fan Shroud Vent Filter Kit Gray - Set of two
To make this a Forced Air solution look for KIT-FAN part numbers.
Outdoor Vent - Labyrinth Non-Metallic Vent
Aluminum Vent 3" - Louvered Aluminum Vent
Dimensions
(Mounting Feet/Flange, Hinge and Latch included in dimensions)
Approximate External Dimensions – 12.20 x 13.69 x 5.30 inches
Approximate Internal Dimensions – 10 x 12 x 4.38 inches
Wall Thickness – 0.16 inch
Weight – 3.89 lbs
General
Color – Light Gray with gloss finish
Material – Polycarbonate
Country of Origin – United States
Construction
Internal Mounting options – Brass inserts in corner bosses
External Mounting Style – Mounting Feet
Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket
3rd Party Ratings
UL-50/c-UL Listed (files#E229365, #E207562)
NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13
IP ratings – IP66
Mechanical and Thermal
Impact rating – IK10
Temperature range, -40 to 265 Deg. F
Outdoor UV exposure – f1 rated
UL-94 Flame Rated
