Premium Line

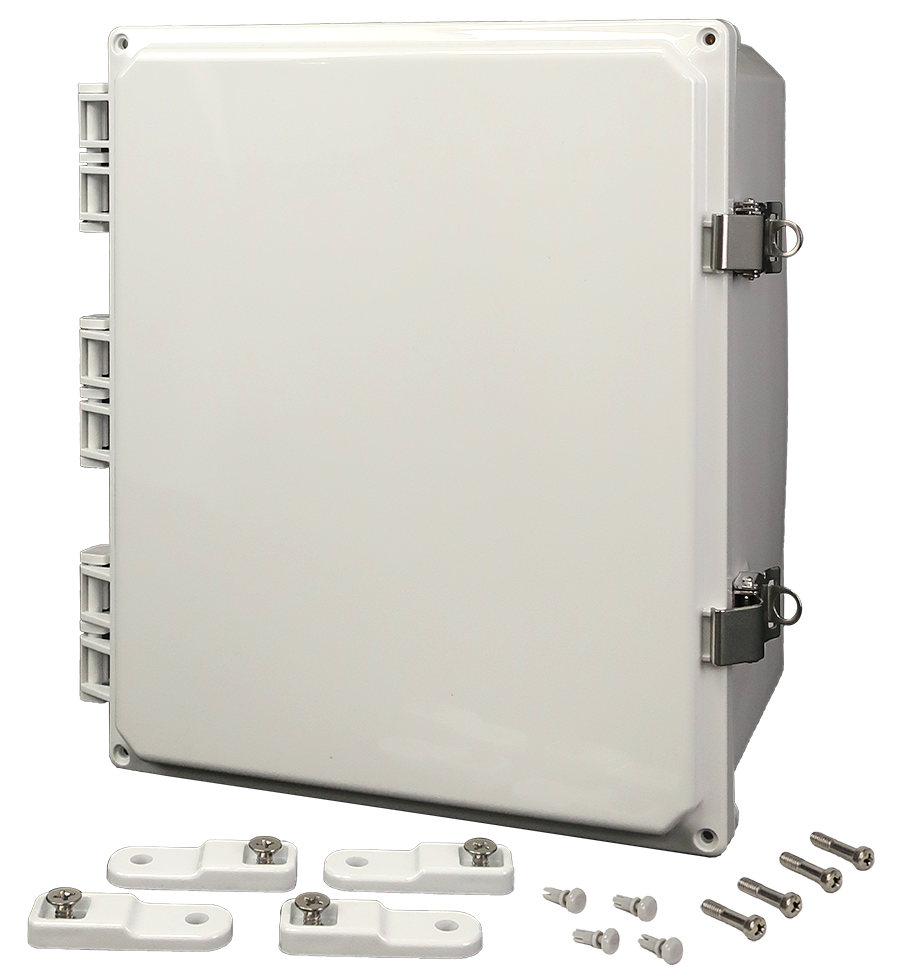

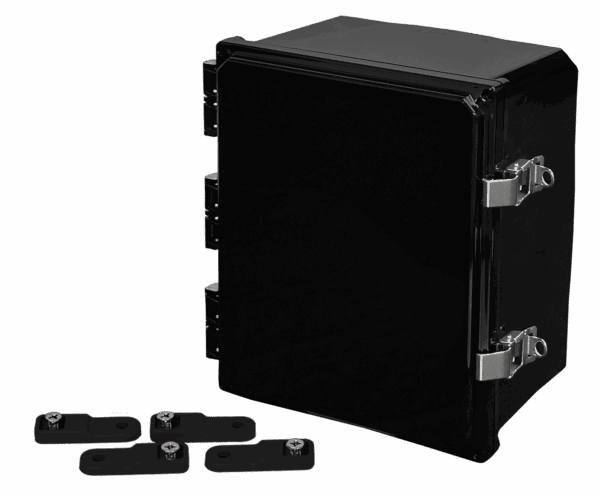

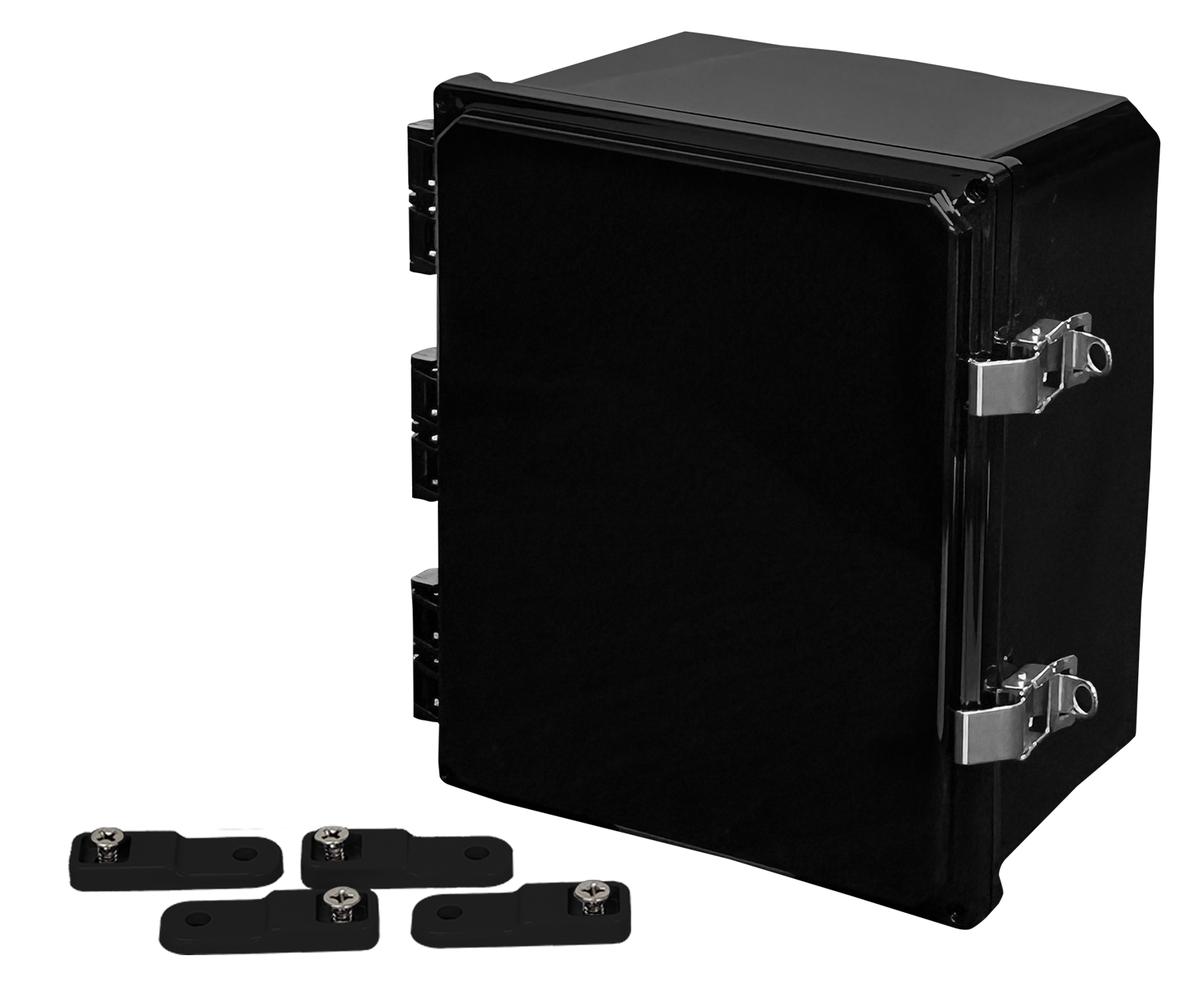

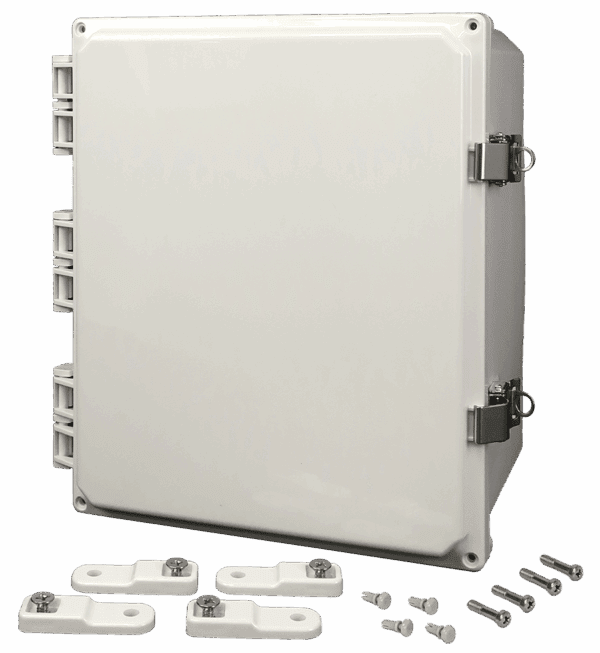

H12106HLL IP66 Outdoor Rated Electronics Enclosure

Part Number:

H12106HLL

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 4X IP66

12X10X6

Mounting Feet

Stainless Steel Locking Latch

Hinged

Opaque cover

Traditional High Impact polycarbonate hinged enclosure with opaque cover, stainless steel locking latch and mounting feet (four screws included).

Protection Rating: UL/cUL NEMA TYPE 4X IP66

List Price:

$301.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-1210
    ABP-1210

    Aluminum Panel for 12" x 10" Enclosure

    Panel Size: 10.75 x 8.88 inches

    Includes Four Mounting Screws

    $ 56.00
  • SBP-1210
    SBP-1210

    Steel Back Panel for 12" x 10" Premium Enclosure
    Panel Dimensions: 10.88 x 8.88 inches
    Includes four mounting screws
    White Powder Coat Finish

    $ 102.00
  • PVCBP-1210
    PVCBP-1210

    PVC  Back Panel for Premium 12" x 10" Enclosure

    Panel Size: 10.75 x 8.88 inches

    Includes Four Mounting Screws

    $ 69.00

Swing Out Panels

  • ABP-1210-USOPK
    ABP-1210-USOPK

    Aluminum Swing Panel Kit for 12x10 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 111.00
  • ABP-1210USP
    ABP-1210USP

    Aluminum Panel for 12x10 Swing Kit

    $ 56.00
  • SBP-1210-USOPK
    SBP-1210-USOPK

    Steel Swing Panel Kit for 12" x 10" Premium Enclosure
    Panel Dimensions: 10.88 x 8.88 inches.
    Kit contains Steel Swing Panel and all harware
    White Powder Coat Finish

    $ 196.00
  • SBP-1210USP
    SBP-1210USP

    Steel Swing Panel for 12" x 10" Premium Enclosure
    Panel Dimensions: 10.88 x 8.88 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 102.00

Replacement Lid

  • H1210CHO-RPL
    H1210CHO-RPL

    Opaque replacement cover for 12" x 10" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included

    $ 88.00
  • X1210CHC-RPL
    X1210CHC-RPL

    Clear replacement cover for 12" x 10" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 90.00

Din Rails

  • DIN10
    DIN10

    DIN Rail Kit for 10"  Premium Enclosure (2 rails, 4 screws)

    $ 44.00

Pole Mount Kit

  • PMKG-1210
    PMKG-1210

    For 10" Wide Enclosure - 12" pole

    This kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 157.00
  • PMKG-210
    PMKG-210

    For 10" Wide Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 104.00
  • PMKG-310
    PMKG-310

    For 10" Wide Enclosure - 3" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 117.00
  • PMKG-410
    PMKG-410

    For 10" Wide Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 124.00

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 28.00
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 45.00
  • MFLK10
    MFLK10

    Mounting Flange Kit 10"

    Includes Four Mounting Screws

    $ 36.00

Vents & Fan Shroud Kits

  • FS-KIT-1
    FS-KIT-1

    Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)

    $ 45.00
  • FS-KIT-2
    FS-KIT-2

    Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)

    $ 86.00
  • FSFK1-G
    FSFK1-G

    Fan Shroud Vent Filter Kit Gray

    To make this a Forced Air solution look for KIT-FAN part numbers.

    $ 72.00
  • FSFK2-G
    FSFK2-G

    Fan Shroud Vent Filter Kit Gray - Set of two

    To make this a Forced Air solution look for KIT-FAN part numbers.



    $ 136.00
  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 27.00
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 29.00

Mechanical and Thermal

Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)
Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)
Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)
Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)
Temperature Range = -40 to 265 °F

Flammable/UV Ratings

Flame Rating = UL, 5VA. (Test Spec. UL-94)
Outdoor UV Exposure = F1. (Test Spec UL)

3rd Party Approvals

UL-50/c-UL Type 4X Listed (file #E207562)
IP 66
If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H12106HLL PDF 12x10x6 Premium Specifications Integra Enclosures Install Sheet Premium UL Certification

2D & 3D Drawings

Sorry! The 2D & 3D Drawings are only avaiable to approved users. Please login or register to access.
