Premium Line

H141206HC IP66 Outdoor Rated Electronics Enclosure

Part Number:

H141206HC

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 4X IP66

14X12X6

Mounting Feet

Four Screws

Screw/Hinged

Clear cover

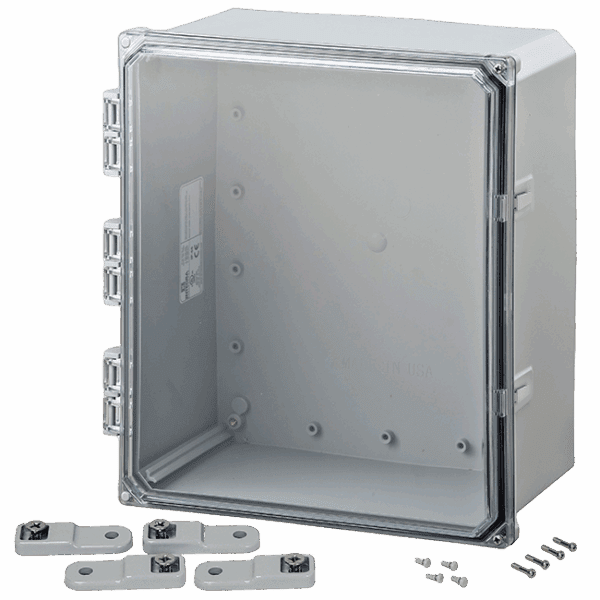

Traditional High Impact polycarbonate hinged enclosure with clear cover and mounting feet (four screws inclluded).

Protection Rating: UL/cUL NEMA TYPE 4X IP66

List Price:

$315.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-1412
    ABP-1412

    Aluminum Panel for 14" x 12" Enclosure

    Panel Size: 12.75 x 10.88 inches

    Includes Four Mounting Screws

    $ 75.00
  • SBP-1412
    SBP-1412

    Steel Back Panel for 14" x 12" Premium Enclosure
    Panel Dimensions: 12.88 x 10.88 inches
    Includes four mounting screws
    White Powder Coat Finish

    $ 120.00
  • PVCBP-1412
    PVCBP-1412

    PVC Back Panel for Premium 14" x 12" Enclosure

    Panel Size: 12.75 x 10.88 inches

    Includes Four Mounting Screws

    $ 90.00

Swing Out Panels

  • ABP-1412-USOPK
    ABP-1412-USOPK

    Aluminum Swing Panel Kit for 14x12 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 130.00
  • ABP-1412USP
    ABP-1412USP

    Aluminum Panel for 14x12 Swing Kit

    $ 75.00
  • SBP-1412-USOPK
    SBP-1412-USOPK

    Steel Swing Panel Kit for 14" x 12" Premium Enclosure
    Panel Dimensions: 12.88 x 10.88 inches.
    Kit contains Steel Swing Panel and all harware
    White Powder Coat Finish

    $ 208.00
  • SBP-1412USP
    SBP-1412USP

    Steel Swing Panel for 14" x 12" Premium Enclosure
    Panel Dimensions: 12.88 x 10.88 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 120.00

Replacement Lid

  • H1412CHO-RPL
    H1412CHO-RPL

    Opaque replacement cover for 14" x 12" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 111.00
  • H1412CSO-RPL
    H1412CSO-RPL

    Opaque replacement cover for 14" x 12" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 106.00
  • X1412CHC-RPL
    X1412CHC-RPL

    Clear replacement cover for 14" x 12" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 119.00
  • X1412CSC-RPL
    X1412CSC-RPL

    Clear replacement cover for 14" x 12" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 109.00

Din Rails

  • DIN12
    DIN12

    DIN Rail Kit for 12" Premium Enclosure (2 rails, 4 screws)

    $ 57.00

Pole Mount Kit

  • PMKG-212
    PMKG-212

    For 12" Wide Premium Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 107.00
  • PMKG-312
    PMKG-312

    For 12" Wide Premium Enclosure - 3" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 120.00
  • PMKG-412
    PMKG-412

    For 12" Wide Premium Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 125.00
  • PMKG-1212
    PMKG-1212

    For 12" Wide Premium Enclosure - 12" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 161.00

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 28.00
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 45.00
  • MFLK12
    MFLK12

    Mounting Flange Kit 12"

    Includes Four Mounting Screws

    $ 36.00

Vents & Fan Shroud Kits

  • FS-KIT-1
    FS-KIT-1

    Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)

    $ 45.00
  • FS-KIT-2
    FS-KIT-2

    Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)

    $ 86.00
  • FSFK1-G
    FSFK1-G

    Fan Shroud Vent Filter Kit Gray

    To make this a Forced Air solution look for KIT-FAN part numbers.

    $ 72.00
  • FSFK2-G
    FSFK2-G

    Fan Shroud Vent Filter Kit Gray - Set of two

    To make this a Forced Air solution look for KIT-FAN part numbers.



    $ 136.00
  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 27.00
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 29.00

Mechanical and Thermal

Instrumented Dart Impact @ 73°F,  565 in-lb.

Falling Ball Impact @ 73° 900 in/lb. Test Spec. UL-746

Deflection Temperature @264 psi, 270 Deg. F, Test Spec. ASTM D648

Modulus of Elasticity 340 ksi, Test Spec. ASTM D790

Temperature Range, -40 to 265 Deg. F


Flammable/UV Ratings

Flame Rating Ð UL, 5VA. Test Spec. UL-94

Outdoor UV Exposure, F1. Test Spec UL


3rd Party Approvals

UL-50/c-UL Listed (files#E229365, #E207562)

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H141206H PDF 14x12x6-Premium Specifications Integra Enclosures Install Sheet Premium UL Certification
