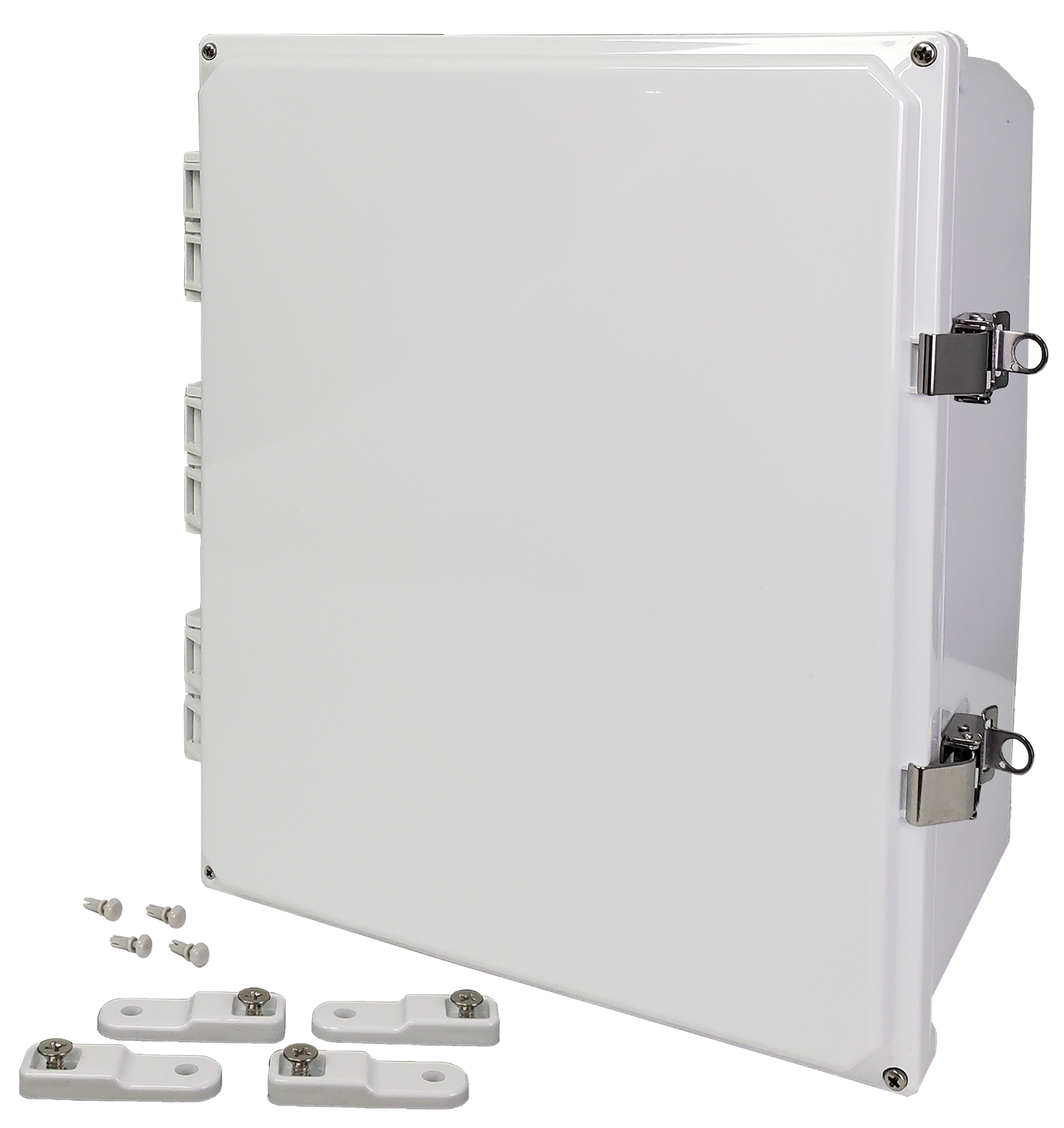

H141206HLL IP66 Outdoor Rated Electronics Enclosure
● Polycarbonate Enclosures, Premium Line
● UL/cUL NEMA TYPE 4X IP66
● Mounting Feet
● Stainless Steel Locking Latch
● Hinged
● Opaque cover
● Enclosure size: 14x12x6
The H141206HLL is a high-impact polycarbonate enclosure featuring a sleek light gray gloss finish and a durable opaque hinged cover. With a UL/cUL NEMA TYPE 4X IP66 rating, it offers exceptional protection against harsh environments. The enclosure includes stainless steel locking latches and external mounting feet for secure installation. Measuring 12 x 14 x 6.38 inches internally, it offers ample space for components and pre-installed brass inserts for flexible mounting. Built to withstand temperatures from -40 to 265°F, it’s ideal for demanding industrial applications and offers reliable protection in any environment.
Protection Rating: UL/cUL NEMA TYPE 4X IP66 | Impact Rating: IK10
Price range: $352.00 through $395.00
Call factory for OEM and quantity discounts
*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*
If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as
Aluminum Panel for 14" x 12" Enclosure
Panel Size: 12.75 x 10.88 inches
Includes Four Mounting Screws
Steel Back Panel for 14" x 12" Premium Enclosure
Panel Dimensions: 12.88 x 10.88 inches
Includes four mounting screws
White Powder Coat Finish
PVC Back Panel for Premium 14" x 12" Enclosure
Panel Size: 12.75 x 10.88 inches
Includes Four Mounting Screws
For 12" Wide Premium Enclosure - 2" pole
Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 12" Wide Premium Enclosure - 3" pole
Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 12" Wide Premium Enclosure - 4" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 12" Wide Premium Enclosure - 12" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Aluminum Swing Panel Kit for 14x12 enclosure
Kit Contains Aluminum Swing Panel and all hardware
Aluminum Panel for 14x12 Swing Kit
Steel Swing Panel Kit for 14" x 12" Premium Enclosure
Panel Dimensions: 12.88 x 10.88 inches.
Kit contains Steel Swing Panel and all hardware
White Powder Coat Finish
Steel Swing Panel for 14" x 12" Premium Enclosure
Panel Dimensions: 12.88 x 10.88 inches.
Pre-Drilled
White Powder Coat Finish
PVC swing panel kit for 14" x 12" Enclosure
Panel Size: 12.88 x 10.88 inches
Kit contains PVC Swing Panel and all hardware
Opaque replacement cover for 14" x 12" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.
Clear replacement cover for 14" x 12" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.
DIN Rail Kit for 12" Premium Enclosure (2 rails, 4 screws)
Mounting Feet Kit - Premium Line-Gray
Includes Four Mounting Screws
Mounting Flange Kit 12"
Includes Four Mounting Screws
Mounting Feet Kit - Stainless Steel
Includes Four Feet and Mounting Hardware
Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)
Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)
Fan Shroud Vent Filter Kit Gray
To make this a Forced Air solution look for KIT-FAN part numbers.
Fan Shroud Vent Filter Kit Gray - Set of two
To make this a Forced Air solution look for KIT-FAN part numbers.
Outdoor Vent - Labyrinth Non-Metallic Vent
Aluminum Vent 3" - Louvered Aluminum Vent
Dimensions
(Mounting Feet/Flange, Hinge and Latch included in dimensions)
Approximate External Dimensions – 14.20 x 15.69 x 7.38 inches
Approximate Internal Dimensions – 12 x 14 x 6.38 inches
Wall Thickness – 0.20 inches
Weight – 6.53 lbs
General
Color – Light Gray with gloss finish
Material – Polycarbonate
Country of Origin – United States
Construction
Internal Mounting options – Brass inserts in corner bosses
External Mounting Style – Mounting Feet
Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket
3rd Party Ratings
UL-50/c-UL Listed (files#E229365, #E207562)
NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13
IP ratings – IP66
Mechanical and Thermal
Impact rating – IK10
Temperature range, -40 to 265 Deg. F
Outdoor UV exposure – f1 rated
UL-94 Flame Rated
