Premium Line

H161407SCF IP68 Waterproof Rated Electronics Enclosure

Part Number:

H161407SCF

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 6P IP68

Mounting Flange

Screw Closure

Screw

Clear cover

Enclosure size: 16x14x7

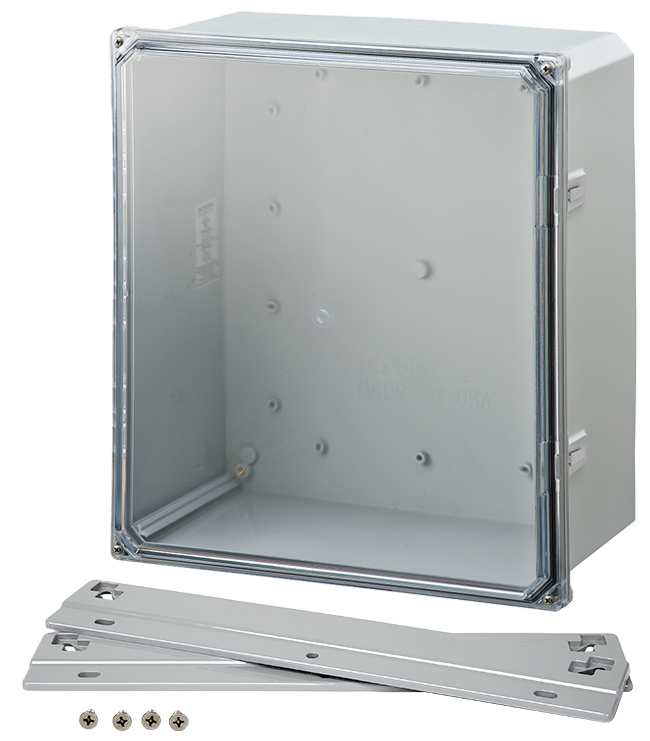

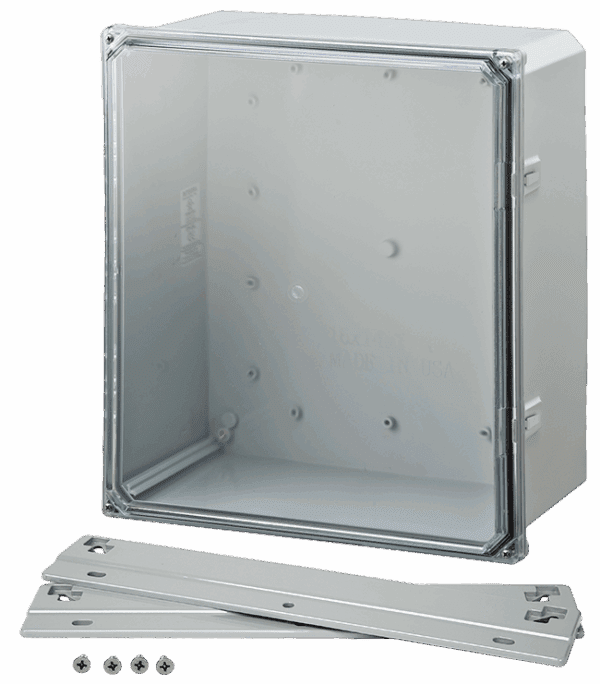

Traditional High Impact polycarbonate screw enclosure with clear cover and mounting flange (four screws included).

Protection Rating: UL/cUL NEMA TYPE 6P IP68

List Price:

$403.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-1614
    ABP-1614

    Aluminum Panel for 16" x 14" Enclosure

    Panel Size: 14.75 x 12.88 inches

    Includes Four Mounting Screws

    $ 92
  • SBP-1614
    SBP-1614

    Steel Back Panel for 16" x 14" Premium Enclosure
    Panel Dimensions: 14.88 x 12.88 inches
    Includes four mounting screws
    White Powder Coat Finish

    $ 154
  • PVCBP-1614
    PVCBP-1614

    PVC Panel for Premium 16" x 14" Enclosure

    Panel Size: 14.75 x 12.88 inches

    Includes Four Mounting Screws

    $ 128

Swing Out Panels

  • ABP-1614-USOPK
    ABP-1614-USOPK

    Aluminum Swing Panel Kit for 16x14 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 149
  • ABP-1614USP
    ABP-1614USP

    Aluminum Panel for 16x14 Swing Kit

    $ 92
  • SBP-1614-USOPK
    SBP-1614-USOPK

    Steel Swing Panel Kit for 16" x 14" Premium Enclosure
    Panel Dimensions: 14.88 x 12.88 inches.
    Kit contains Steel Swing Panel and all hardware
    White Powder Coat Finish

    $ 248
  • SBP-1614USP
    SBP-1614USP

    Steel Swing Panel for 16" x 14" Premium Enclosure
    Panel Dimensions: 14.88 x 12.88 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 148
  • PVC-1614-USOPK
    PVC-1614-USOPK

    PVC swing panel kit 16" x 14" Enclosure

    Panel Size: 14.88 x 12.88 inches

    Kit contains PVC Swing Panel and all hardware

    $ 185

Replacement Lid

  • H1614CSO-RPL
    H1614CSO-RPL

    Opaque replacement cover for 16" x 14" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 125
  • X1614CSC-RPL
    X1614CSC-RPL

    Clear replacement cover for 16" x 14" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 130

Din Rails

  • DIN14
    DIN14

    DIN Rail Kit for 14" Premium Enclosure (2 rails, 4 screws)

    $ 64

Pole Mount Kit

  • PMKG-214
    PMKG-214

    For 14" Wide Premium Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 115
  • PMKG-314
    PMKG-314

    For 14" Wide Premium Enclosure - 3" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 130
  • PMKG-414
    PMKG-414

    For 14" Wide Premium Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 141
  • PMKG-1214
    PMKG-1214

    For 14" Wide Premium Enclosure - 12" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 171

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 29
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 47
  • MFLK14
    MFLK14

    Mounting Flange Kit 14"

    Includes Four Mounting Screws

    $ 46

Vents & Fan Shroud Kits

  • FS-KIT-1
    FS-KIT-1

    Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)

    $ 47
  • FS-KIT-2
    FS-KIT-2

    Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)

    $ 89
  • FSFK1-G
    FSFK1-G

    Fan Shroud Vent Filter Kit Gray

    To make this a Forced Air solution look for KIT-FAN part numbers.

    $ 75
  • FSFK2-G
    FSFK2-G

    Fan Shroud Vent Filter Kit Gray - Set of two

    To make this a Forced Air solution look for KIT-FAN part numbers.



    $ 141
  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 28
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 30

Dimensions

(Mounting Feet/Flange, Hinge and Latch included in dimensions)

Approximate External Dimensions – 14.71 x 17.67 x 8.38 inches

Approximate Internal Dimensions – 14 x 16 x 7.38 inches

Wall Thickness – 0.20 inches

Weight – 8.96 lbs


General

Color – Light Gray with gloss finish

Material – Polycarbonate

Country of Origin – United States


Construction

Internal Mounting options – Brass inserts in corner bosses

External Mounting Style – Mounting Flange

Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket


3rd Party Ratings

UL-50/c-UL Listed (files#E229365, #E207562)

NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 6, 6P, 12, 13

IP ratings – IP66, IP68


Mechanical and Thermal

Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)

Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)

Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)

Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)

Temperature Range = -40 to 265 °F


Flammable/UV Ratings

Flame Rating = UL, 5VA. (Test Spec. UL-94)

Outdoor UV Exposure = F1. (Test Spec UL)

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H161407SF PDF 16x14x7-Premium Specifications Integra Enclosures Install Sheet Premium UL Certification
