Premium Line

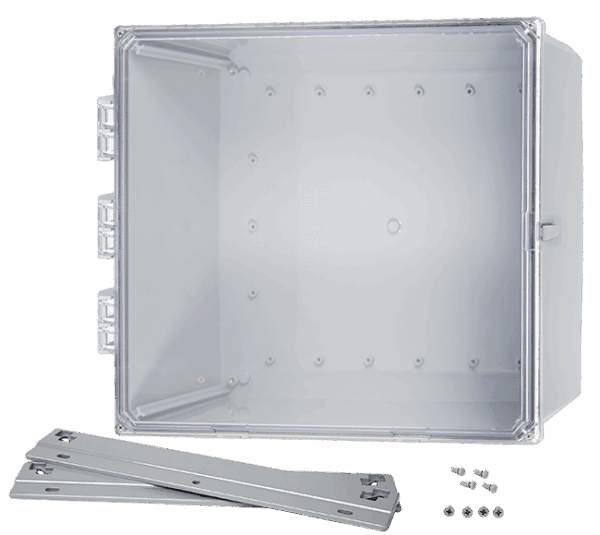

H161810HCF-6P IP68 Waterproof Rated Electronics Enclosure

Part Number:

H161810HCF-6P

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 6P IP68

Mounting Flange

Screw Closure

Screw/Hinged

Clear cover

Enclosure size: 16x18x10

High impact polycarbonate hinged enclosure with clear cover and screw closure. Mounting flanges included. Protection Rating: UL/cUL NEMA TYPE 6P IP68

List Price:

$500.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-1816
    ABP-1816

    Aluminum Panel for 18" x 16" Enclosure

    Panel Size: 16.75 x 14.88 inches

    Includes Four Mounting Screws

    $ 128
  • SBP-1816
    SBP-1816

    Steel Back Panel for 18" x 16" Premium Enclosure
    Panel Dimensions: 16.75 x 14.88 inches
    Includes four mounting screws
    White Powder Coat Finish

    $ 181
  • PVCBP-1816
    PVCBP-1816

    PVC Back Panel for Premium 18" x 16" Enclosure

    Panel Size: 16.75 x 14.88 inches

    Includes Four Mounting Screws

    $ 188

Swing Out Panels

  • ABP-1816-USOPK
    ABP-1816-USOPK

    Aluminum Swing Panel Kit for 18x16 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 185
  • ABP-1816USP
    ABP-1816USP

    Aluminum Panel for 18x16 Swing Kit

    $ 128
  • SBP-1816-USOPK
    SBP-1816-USOPK

    Steel Swing Panel Kit for 18" x 16" Premium Enclosure
    Panel Dimensions: 16.75 x 14.88 inches.
    Kit contains Steel Swing Panel and all hardware
    White Powder Coat Finish

    $ 277
  • SBP-1816USP
    SBP-1816USP

    Steel Swing Panel for 18" x 16" Premium Enclosure
    Panel Dimensions: 16.75 x 14.88 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 175
  • PVC-1816-USOPK
    PVC-1816-USOPK

    PVC swing panel kit 18" x 16" Enclosure

    Panel Size: 16.75 x 14.88 inches

    Kit contains PVC Swing Panel and all hardware

    $ 245

Replacement Lid

  • H1618CHO-RPL
    H1618CHO-RPL

    Opaque replacement cover for 16" x 18" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 178
  • X1618CHC-RPL
    X1618CHC-RPL

    Clear replacement cover for 16" x 18" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 185

Din Rails

  • DIN18
    DIN18

    DIN Rail Kit for 18"  Premium Enclosure (2 rails, 4 screws)

    $ 77

Pole Mount Kit

  • PMKG-218
    PMKG-218

    For 18" Wide Premium Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 128
  • PMKG-318
    PMKG-318

    For 18" Wide Premium Enclosure - 3" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 139
  • PMKG-418
    PMKG-418

    For 18" Wide Premium Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 160
  • PMKG-1218
    PMKG-1218

    For 18" Wide Premium Enclosure - 12" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 178

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 29
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 47
  • MFLK16
    MFLK16

    Mounting Flange Kit 16"

    Includes Four Mounting Screws

    $ 49

Vents & Fan Shroud Kits

  • FS-KIT-1
    FS-KIT-1

    Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)

    $ 47
  • FS-KIT-2
    FS-KIT-2

    Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)

    $ 89
  • FSFK1-G
    FSFK1-G

    Fan Shroud Vent Filter Kit Gray

    To make this a Forced Air solution look for KIT-FAN part numbers.

    $ 75
  • FSFK2-G
    FSFK2-G

    Fan Shroud Vent Filter Kit Gray - Set of two

    To make this a Forced Air solution look for KIT-FAN part numbers.



    $ 141

Dimensions

(Mounting Feet/Flange, Hinge and Latch included in dimensions)

Approximate External Dimensions – 20.02 x 16.92 x 11.42 inches

Approximate Internal Dimensions – 18 x 16 x 10.36 inches

Wall Thickness – 0.23 inches

Weight – 14.22 lbs


General

Color – Light Gray with gloss finish

Material – Polycarbonate

Country of Origin – United States


Construction

Internal Mounting options – Brass inserts in corner bosses

External Mounting Style – Mounting Flange

Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket


3rd Party Ratings

UL-50/c-UL Listed (files#E229365, #E207562)

NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 6, 6P, 12, 13

IP ratings – IP66, IP68


Mechanical and Thermal

Instrumented Dart Impact @ 73°F,  565 in-lb.

Falling Ball Impact @ 73° 900 in/lb. Test Spec. UL-746

Deflection Temperature @264 psi, 270 Deg. F, Test Spec. ASTM D648

Modulus of Elasticity 340 ksi, Test Spec. ASTM D790

Temperature Range, -40 to 265 Deg. F


Flammable/UV Ratings

Flame Rating Ð UL, 5VA. Test Spec. UL-94

Outdoor UV Exposure, F1. Test Spec UL

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H161810HF PDF Integra Enclosures Install Sheet Premium UL Certification

2D & 3D Drawings

Sorry! The 2D & 3D Drawings are only available to approved users. Please login or register to access.
