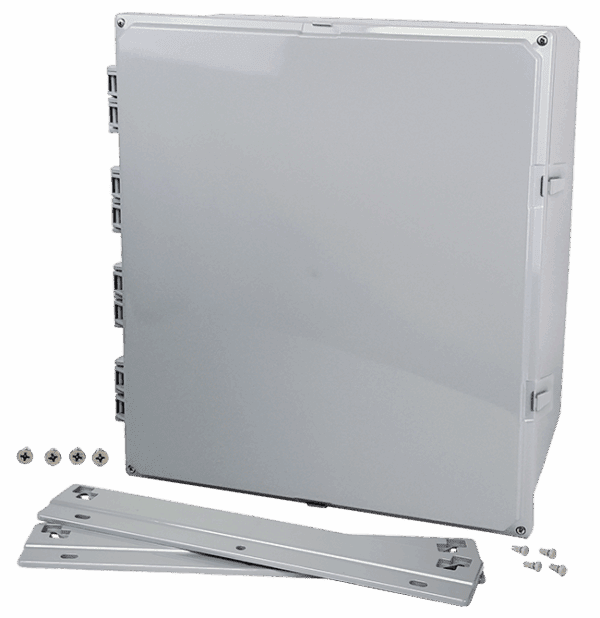

H181608HF-6P IP68 Waterproof Rated Electronics Enclosure
● Polycarbonate enclosures, Premium Line
● UL/cUL NEMA TYPE 6P IP68
● Mounting Flange
● Screw Closure
● Screw/Hinged
● Opaque cover
● Enclosure size: 18x16x08
$423.00
Call factory for OEM and quantity discounts
*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*
If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as
Aluminum Panel for 18" x 16" Enclosure
Panel Size: 16.75 x 14.88 inches
Includes Four Mounting Screws
Steel Back Panel for 18" x 16" Premium Enclosure
Panel Dimensions: 16.75 x 14.88 inches
Includes four mounting screws
White Powder Coat Finish
PVC Back Panel for Premium 18" x 16" Enclosure
Panel Size: 16.75 x 14.88 inches
Includes Four Mounting Screws
Aluminum Swing Panel Kit for 18x16 enclosure
Kit Contains Aluminum Swing Panel and all hardware
Aluminum Panel for 18x16 Swing Kit
Steel Swing Panel Kit for 18" x 16" Premium Enclosure
Panel Dimensions: 16.75 x 14.88 inches.
Kit contains Steel Swing Panel and all hardware
White Powder Coat Finish
Steel Swing Panel for 18" x 16" Premium Enclosure
Panel Dimensions: 16.75 x 14.88 inches.
Pre-Drilled
White Powder Coat Finish
PVC swing panel kit 18" x 16" Enclosure
Panel Size: 16.75 x 14.88 inches
Kit contains PVC Swing Panel and all hardware
Opaque replacement cover for 18" x 16" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.
Opaque replacement cover for 18" x 16" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.
Clear replacement cover for 18" x 16" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.
Clear replacement cover for 18" x 16" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.
DIN Rail Kit for 16" Premium Enclosure(2 rails, 4 screws)
For 16" Wide Premium Enclosure - 12" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 16" Wide Premium Enclosure - 2" pole
Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 16" Wide Premium Enclosure - 3" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 16" Wide Premium Enclosure - 4" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Mounting Feet Kit - Premium Line-Gray
Includes Four Mounting Screws
Mounting Feet Kit - Stainless Steel
Includes Four Feet and Mounting Hardware
Mounting Flange Kit 16"
Includes Four Mounting Screws
Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)
Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)
Fan Shroud Vent Filter Kit Gray
To make this a Forced Air solution look for KIT-FAN part numbers.
Fan Shroud Vent Filter Kit Gray - Set of two
To make this a Forced Air solution look for KIT-FAN part numbers.
Outdoor Vent - Labyrinth Non-Metallic Vent
Aluminum Vent 3" - Louvered Aluminum Vent
Dimensions
(Mounting Feet/Flange, Hinge and Latch included in dimensions)
Approximate External Dimensions – 17.64 x 19.68 x 9.42 inches
Approximate Internal Dimensions – 16 x 18 x 8.36 inches
Wall Thickness – 0.23 inches
Weight – 14.35 lbs
General
Color – Light Gray with gloss finish
Material – Polycarbonate
Country of Origin – United States
Construction
Internal Mounting options – Brass inserts in corner bosses
External Mounting Style – Mounting Flange
Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket
3rd Party Ratings
UL-50/c-UL Listed (files#E229365, #E207562)
NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 6, 6P, 12, 13
IP ratings – IP66, IP68)
Mechanical and Thermal
Instrumented Dart Impact @ 73°F, 565 in-lb.
Falling Ball Impact @ 73° 900 in/lb. Test Spec. UL-746
Deflection Temperature @264 psi, 270 Deg. F, Test Spec. ASTM D648
Modulus of Elasticity 340 ksi, Test Spec. ASTM D790
Temperature Range, -40 to 265 Deg. F
Flammable/UV Ratings
Flame Rating Ð UL, 5VA. Test Spec. UL-94
Outdoor UV Exposure, F1. Test Spec UL
