H6062SC IP68 Waterproof Rated Electronics Enclosure

Part Number:

H6062SC

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 6P IP68

Mounting Feet

Screw Closure

Screw

Clear cover

Enclosure size: 6x6x2

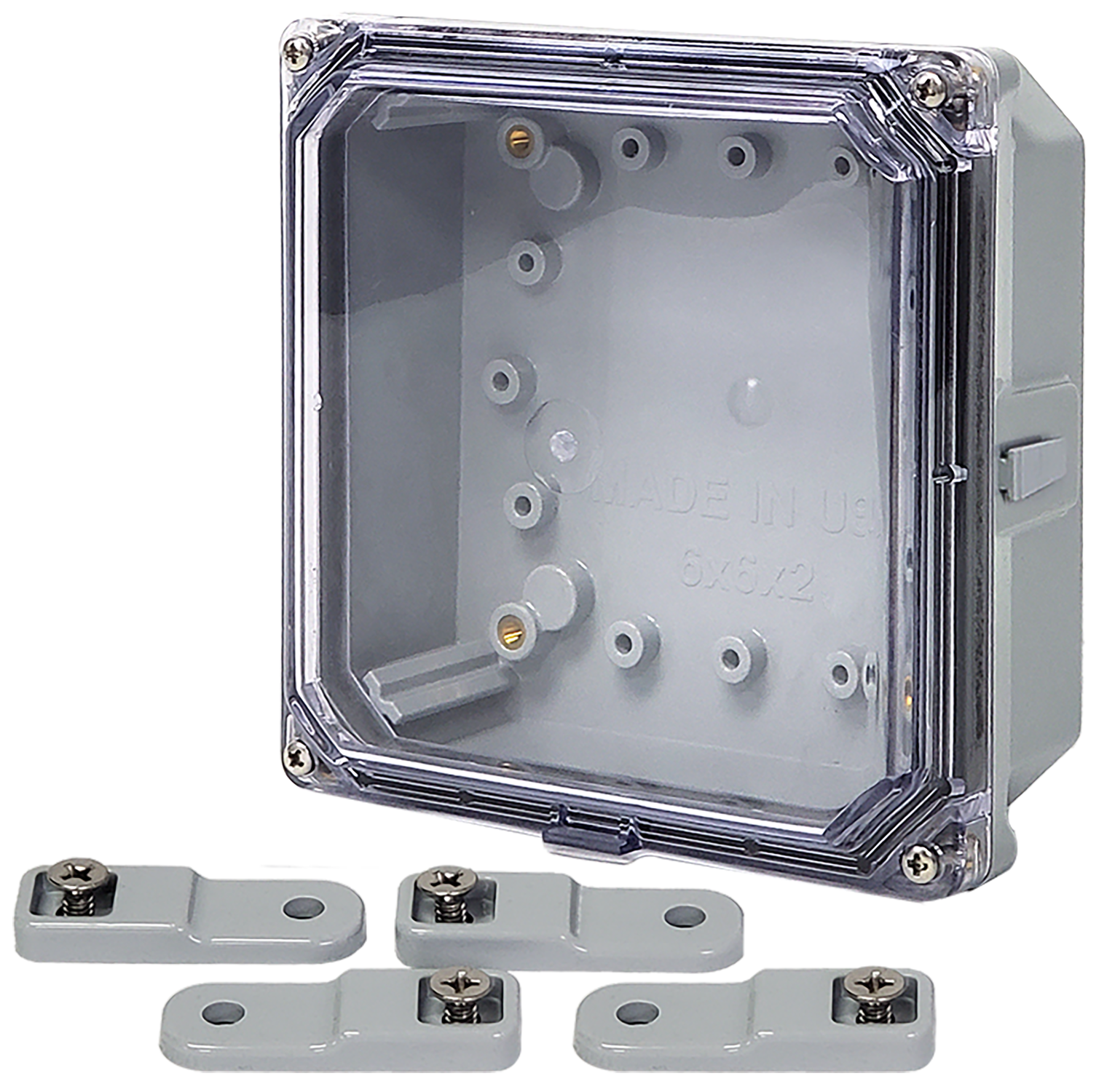

The H6062SC is a durable polycarbonate enclosure designed for outdoor and industrial use. It features a clear cover with mounting feet, providing protection against environmental factors with UL/cUL NEMA Type 6P and IP68 ratings. The enclosure is light gray with a gloss finish, offering a temperature range from -40°F to 265°F. It is built with brass inserts for easy internal mounting and includes a hydro-phobic urethane gasket for a secure seal. The product is suitable for various applications requiring high-impact resistance and UV protection.

Protection Rating: UL/cUL NEMA TYPE 6P IP68

List Price:

$105.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-66
    ABP-66

    Aluminum Panel for 6"x6" enclosure

    Panel Size: 4.88 x 4.88 inches

    Includes Four Mounting Screws

    $ 30
  • SBP-66
    SBP-66

    Steel Back Panel for 6" x 6" Premium Enclosure
    Panel Dimensions: 4.92 x 4.92 inches
    Includes four mounting screws
    White Powder Coat Finish

    $ 69
  • PVCBP-66
    PVCBP-66

    PVC Back Panel for Premium 6" x 6" Enclosure

    Panel Size: 4.88 x 4.88 inches

    Includes Four Mounting Screws

    $ 40

Swing Out Panels

  • ABP-66-USOPK
    ABP-66-USOPK

    Aluminum Swing Panel Kit for 6x6 Premium enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 87
  • ABP-66USP
    ABP-66USP

    Aluminum Panel for 6x6 Swing Kit

    $ 30
  • SBP-66-USOPK
    SBP-66-USOPK

    Steel Swing Panel Kit for 6" x 6" Premium Enclosure
    Panel Dimensions: 4.92 x 4.92 inches.
    Kit contains Steel Swing Panel and all hardware
    White Powder Coat Finish

    $ 164
  • SBP-66USP
    SBP-66USP

    Steel Swing Panel for 6" x 6" Premium Enclosure
    Panel Dimensions: 4.92 x 4.92 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 69

Replacement Lid

  • H66CSO-RPL
    H66CSO-RPL

    Opaque replacement cover for 6" x 6" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 45
  • X66CSC-RPL
    X66CSC-RPL

    Clear replacement cover for 6" x 6" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 46

Din Rails

  • DIN6
    DIN6

    DIN Rail Kit for 6" Premium Enclosure (2 rails, 4 screws)

    $ 32

Pole Mount Kit

  • PMKG-26
    PMKG-26

    For 6" Wide Premium Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 100
  • PMKG-36
    PMKG-36

    For 6" Wide Premium Enclosure - 3" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 122
  • PMKG-46
    PMKG-46

    For 6" Wide Premium Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    Includes Four Mounting Screws

    $ 126
  • PMKG-126
    PMKG-126

    For 6" Wide Premium Enclosure - 12" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 155

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 29
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 47
  • MFLK6
    MFLK6

    Mounting Flange Kit 6"

    Includes Four Mounting Screws

    $ 29

Vents & Fan Shroud Kits

  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 28
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 30

Dimensions

(Mounting Feet/Flange, Hinge and Latch included in dimensions)

Approximate External Dimensions – 6.54 x 8.07 x 3.55 inches

Approximate Internal Dimensions – 6 x 6 x 2.38 inches

Wall Thickness – 0.16 inch

Weight – 1.07 lbs


General

Color – Light Gray with gloss finish

Material – Polycarbonate

Country of Origin – United States


Construction

Internal Mounting options – Brass inserts in corner bosses

External Mounting Style – Mounting Feet

Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket


3rd Party Ratings

UL-50/c-UL Listed (files#E229365, #E207562)

NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 6, 6P, 12, 13

IP ratings – IP66, IP68


Mechanical and Thermal

Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)

Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)

Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)

Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)

Temperature Range = -40 to 265 °F


Flammable/UV Ratings

Flame Rating = UL, 5VA. (Test Spec. UL-94)

Outdoor UV Exposure = F1. (Test Spec UL)

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H6062S PDF Integra Enclosures Install Sheet Premium UL Certification 6x6x2 Premium Specifications
