● Impact line, Polycarbonate enclosures
● UL/cUL NEMA TYPE 6P IP68
● Integrated Mounting Flange
● Integrated Locking Latch
● Standard Hinge
● Clear cover
● Enclosure size: 10x8x6

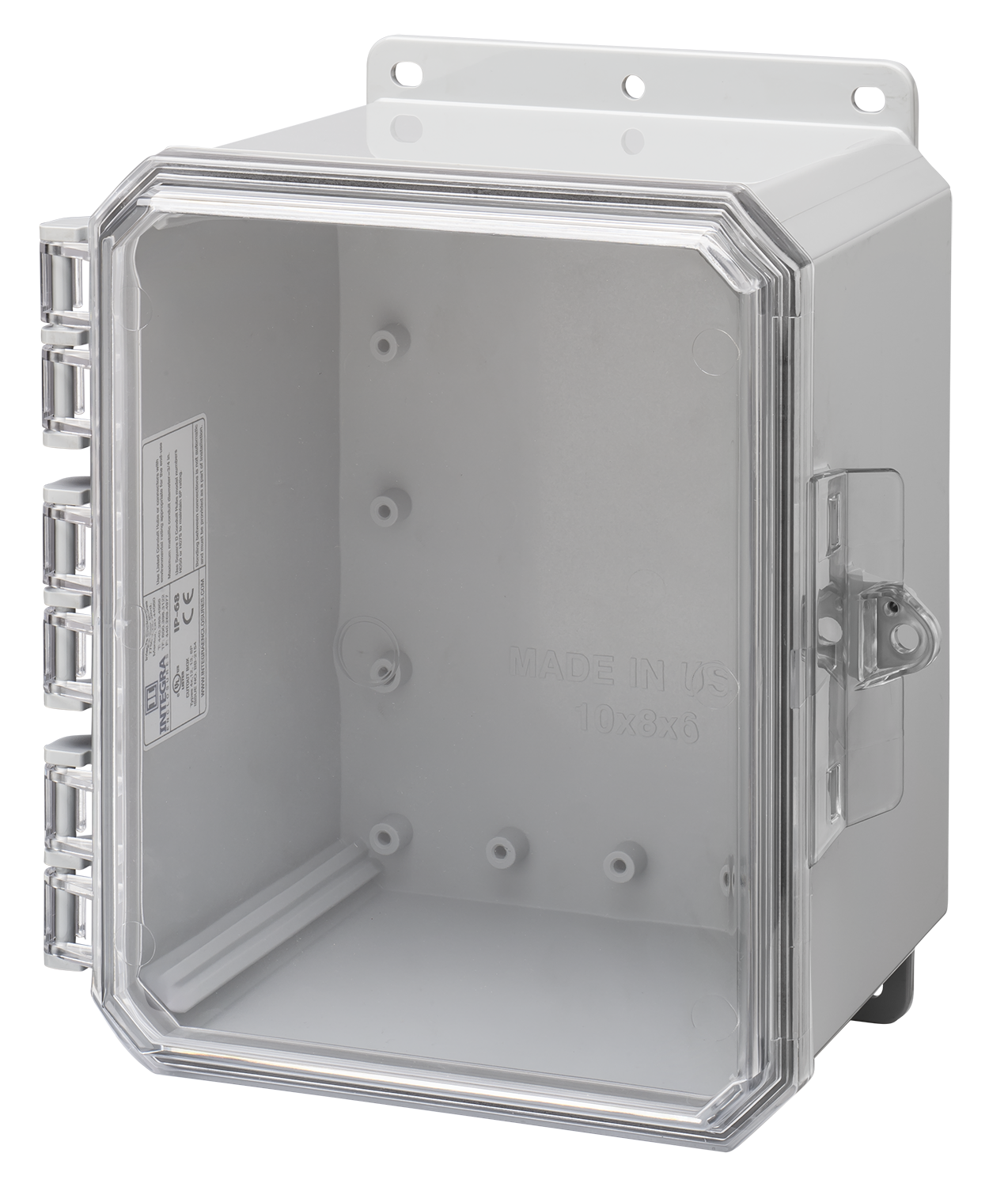

10″ x 8″ x 6″ high impact polycarbonate enclosure with hinged clear cover. Integrated locking latch and mounting flanges provide a 100% metal-free enclosure with no hardware required.
Protection Rating: UL/cUL NEMA TYPE 6P IP68
$216.00
Call factory for OEM and quantity discounts
*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*
If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as
Aluminum Back Panel for Impact 10"x8" Enclosure
Panel Size: 8.75 x 6.88 inches
Includes Four Mounting Screws
Steel Back Panel for 10" x 8" Impact Enclosure
Panel Dimensions: 8.75 x 6.88 inches.
Includes Four Mounting Screws
White Powder Coat Finish
PVC Back Panel for Impact 10"x8" Enclosure.
Panel Dimensions: 8.75 x 6.88 inches.
Includes Four Mounting Screws
Aluminum Panel for 10x8 Swing Kit
Aluminum Swing Panel Kit for 10x8 enclosure
Kit Contains Aluminum Swing Panel and all hardware
Steel Swing Panel for 10" x 8" Premium Enclosure
Panel Dimensions: 8.75 x 6.88 inches.
Pre-Drilled
White Powder Coat Finish
Steel Swing Panel Kit for 10" x 8" Premium Enclosure
Panel Dimensions: 8.75 x 6.88 inches.
Kit contains Steel Swing Panel and all hardware
White Powder Coat Finish
Clear replacement cover for 10" x 8" Impact Enclosure with standard hinge and integrated latch. Gasket installed
DIN Rail Kit for 8" Impact Enclosure (2 rails, 4 self tapping screws)
For 8" Wide Impact Enclosure - 10-12" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Universal Pole Mount Kit for Impact Line - 2" to 6" pole, Zip Tie Straps and mounting hardware
For 8" Wide Impact Enclosure - 2" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole.
For 8" Wide Impact Enclosure - 3" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 8" Wide Impact Enclosure - 4" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Screw Pack (for Mounting to Bosses, 10pcs)
Dimensions
(Mounting Feet/Flange, Hinge and Latch included in dimensions)
Approximate External Dimensions – 10.27 x 11.69 x 7.01 inches
Approximate Internal Dimensions – 8 x 10 x 6.23 inches
Wall Thickness – 0.16 inches
Weight – 2.90 lbs
General
Color – Light Gray with gloss finish
Material – Polycarbonate
Country of Origin – United States
Construction
Internal Mounting options – Bosses on rear wall and lid of opaque covers
External Mounting Style – Integrated Mounting Flange
Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket
3rd Party Ratings
UL-50/c-UL Listed (file #E207562)
NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 6, 6P, 12, 13
IP ratings – IP66, IP68
Mechanical and Thermal
Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)
Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)
Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)
Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)
Temperature Range = -40 to 265 °F
Flammable/UV Ratings
Flame Rating = UL, 5VA. (Test Spec. UL-94)
Outdoor UV Exposure = F1. (Test Spec UL)
