P10086LPCNL IP66 Outdoor Rated Electronics Enclosure
● Impact line, Polycarbonate Enclosures
● UL/cUL NEMA TYPE 4X IP66
● Integrated Mounting Flange
● Non-Metallic Locking Latch
● Low Profile Hinge
● Clear cover
● Enclosure size: 10x8x6

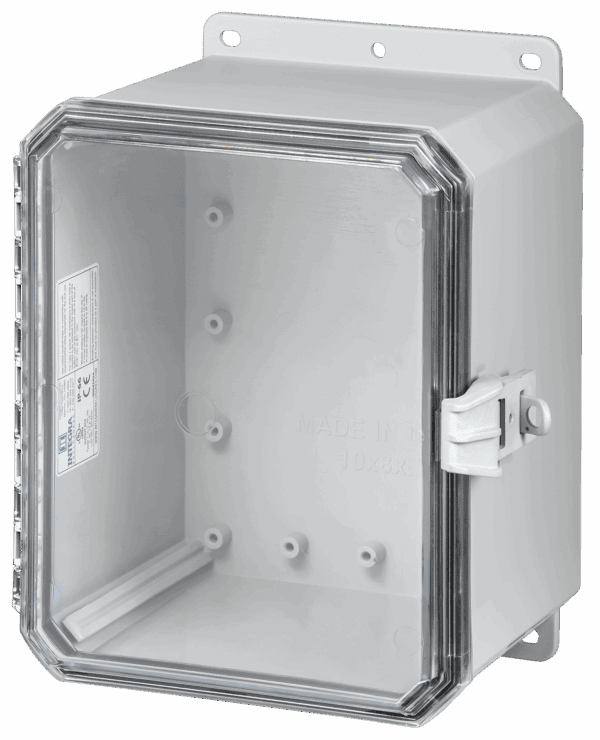

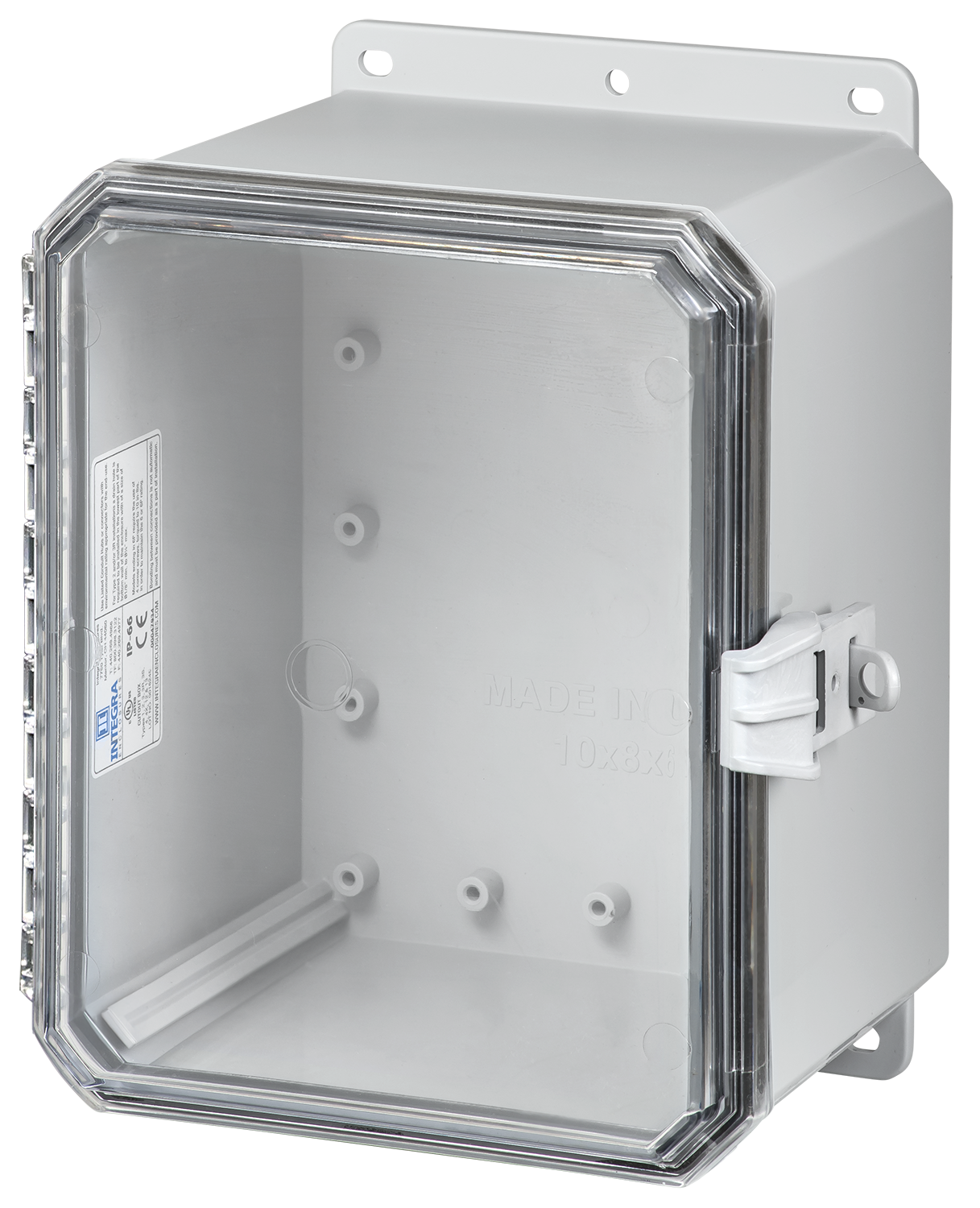

The P10086LPCNL is a rugged polycarbonate enclosure with a clear cover, low-profile continuous hinge, and plastic hasp latch. With external dimensions of approximately 10 x 11.7 x 7 inches and internal dimensions of approximately 8 x 10 x 6.23 inches, the low-profile hinge saves 0.5 inch off the external width of the enclosure. This light gray enclosure is rated UL/cUL NEMA Type 4X and IP66, ensuring resistance to dust and water ingress as well as rust and corrosion. Internal bosses on both the rear wall and lid accommodate versatile component mounting and the corner t-rails allow for adjustable panel height. The hydro-phobic urethane gasket ensures a secure environmental seal and the molded-in mounting flanges allows for simple mounting without additional hardware. Engineered for a wide temperature range of -40°F to 265°F, it delivers exceptional impact resistance and UV stability, making it ideal for harsh indoor or outdoor applications.
Protection Rating: UL/cUL NEMA TYPE 4X IP66
*Low Profile models require a minimum order quantity. Contact factory for details.
$264.00
Call factory for OEM and quantity discounts
*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*
If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as
Aluminum Back Panel for Impact 10"x8" Enclosure
Panel Size: 8.75 x 6.88 inches
Includes Four Mounting Screws
Steel Back Panel for 10" x 8" Impact Enclosure
Panel Dimensions: 8.75 x 6.88 inches.
Includes Four Mounting Screws
White Powder Coat Finish
PVC Back Panel for Impact 10"x8" Enclosure.
Panel Dimensions: 8.75 x 6.88 inches.
Includes Four Mounting Screws
Aluminum Panel for 10x8 Swing Kit
Aluminum Swing Panel Kit for 10x8 enclosure
Kit Contains Aluminum Swing Panel and all hardware
Steel Swing Panel for 10" x 8" Premium Enclosure
Panel Dimensions: 8.75 x 6.88 inches.
Pre-Drilled
White Powder Coat Finish
Steel Swing Panel Kit for 10" x 8" Premium Enclosure
Panel Dimensions: 8.75 x 6.88 inches.
Kit contains Steel Swing Panel and all hardware
White Powder Coat Finish
Clear replacement cover for 10" x 8" Impact Enclosure with low profile hinge and hasp latch. Gasket installed (Latch not included)
DIN Rail Kit for 8" Impact Enclosure (2 rails, 4 self tapping screws)
For 8" Wide Impact Enclosure - 10-12" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Universal Pole Mount Kit for Impact Line - 2" to 6" pole, Zip Tie Straps and mounting hardware
For 8" Wide Impact Enclosure - 2" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole.
For 8" Wide Impact Enclosure - 3" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 8" Wide Impact Enclosure - 4" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Screw Pack (for Mounting to Bosses, 10pcs)
Dimensions
(Mounting Feet/Flange, Hinge and Latch included in dimensions)
Approximate External Dimensions – 10.06 x 11.69 x 7.01 inches
Approximate Internal Dimensions – 8 x 10 x 6.23 inches
Wall Thickness – 0.16 inches
Weight – 3.31 lbs
General
Color – Light Gray with gloss finish
Material – Polycarbonate
Country of Origin – United States
Construction
Internal Mounting options – Bosses on rear wall and lid of opaque covers
External Mounting Style – Integrated Mounting Flange
Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket
3rd Party Ratings
UL-50/c-UL Listed (file #E207562)
NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13
IP ratings – IP66
Mechanical and Thermal
Impact rating – IK10
Temperature range, -40 to 265 Deg. F
Outdoor UV exposure – f1 rated
UL-94 Flame Rated
