Good ventilation isn’t just a nice idea, it’s essential to maintaining the performance and longevity of your electrical enclosure. Without proper airflow, heat and moisture can build up inside, which can lead to overheating, corrosion, and even system failure.
Why Ventilation Matters for Electrical Enclosures
Enclosures provide protection against dust, moisture, temperature extremes, and element exposure that can cause severe damage sensitive electrical components. However, the same barriers that keep debris out can also trap heat and condensation inside, especially when devices generate heat or the external environment fluctuates. That’s why proper ventilation is crucial for performance and service life.
Proper ventilation:
- Regulates internal temperature to avoid thermal stress
- Prevents condensation and corrosion
- Extends the lifespan of both the enclosure and internal equipment
- Reduces maintenance costs and system downtime
- Maintains safe operating conditions
Do Electrical Boxes Need Ventilation?
Airflow is essential to keep electrical boxes running safely and efficiently. Without it, heat-generating components like transformers, motor controllers, and relays can quickly raise internal temperatures, leading to degraded performance and premature equipment failure.
Moisture is another threat. Warm, humid environments can cause condensation to form inside the enclosure. Over time, even small amounts of condensation can corrode metal components and increase the risk of electrical shorts.
Types of Ventilation Methods
There’s no one-size-fits-all approach to ventilating electrical enclosures. Heat load, environmental exposure, location, and the components housed within the enclosure are all factors that determine the approach that works best. Depending on these conditions, the right solution could be as simple as passive vents or more advanced systems like active fans or heat exchangers.
Passive Vents
Passive ventilation relies on natural convection to allow warm air to escape and cool, fresh air to enter without the need for external power.
- Ideal applications: Low-power applications, indoor spaces, or outdoor settings with limited exposure to the elements.
- Advantages: Simple, cost- and energy-efficient, minimal maintenance required.
- Limitations: Less effective in high-heat environments or fluctuating temperatures.

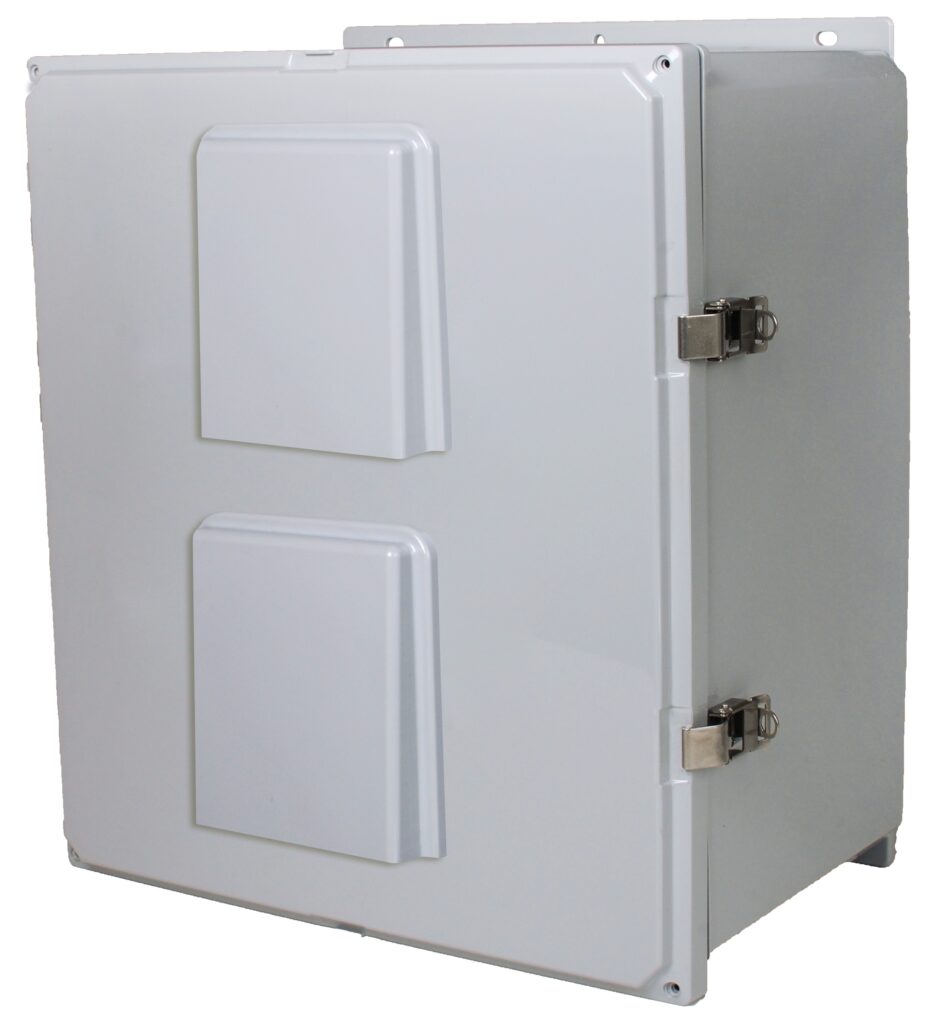

Active Fans
In settings with high heat loads, direct exposure to sunlight, or dense component layouts, passive ventilation may not be enough. Active fans provide forced-air cooling to help regulate internal temperatures.
- Ideal applications: Heat-producing electronics or installations with continuous or variable temperatures.
- Advantages: Reliable, precise cooling performance in demanding environments.
- Limitations: Can be noisy; not suited for remote or inaccessible locations.
Breather Vents
Breather vents help equalize internal and external pressure through the slow exchange of air without allowing moisture, dust or contaminants to enter sealed enclosures.
- Ideal applications: Sealed cabinet enclosures where temperature fluctuations and humidity are primary concerns.
- Advantages: Maintains NEMA/IP ratings and improves condensation protection.
- Disadvantages: Doesn’t offer active cooling.
Heat Exchangers
Heat exchangers bridge the gap between active and passive ventilation and provide thermal management through powered or natural means without allowing direct airflow between the interior and exterior of the enclosure.
- Ideal applications: Environments that require thermal control without compromising enclosure integrity.
- Advantages: Effective for sealed boxes as air exchange isn’t required.
- Limitations: More costly and complex than vents or fans.
Signs Your Enclosure May Be Under-Ventilated
Ignoring the signs of improper or inadequate airflow can lead to serious operational issues down the road. Prevention starts by knowing these red flags:
- Condensation: Visible moisture inside the enclosure or on components
- Excessive heat: Frequent temperature alarms or a hot-to-the-touch surface
- Equipment malfunctions: Unexplained shutdowns or erratic performance
- Corrosion/discoloration: Rust or oxidation around terminals and connectors
- Frequent repairs: Recurring failures or maintenance issues

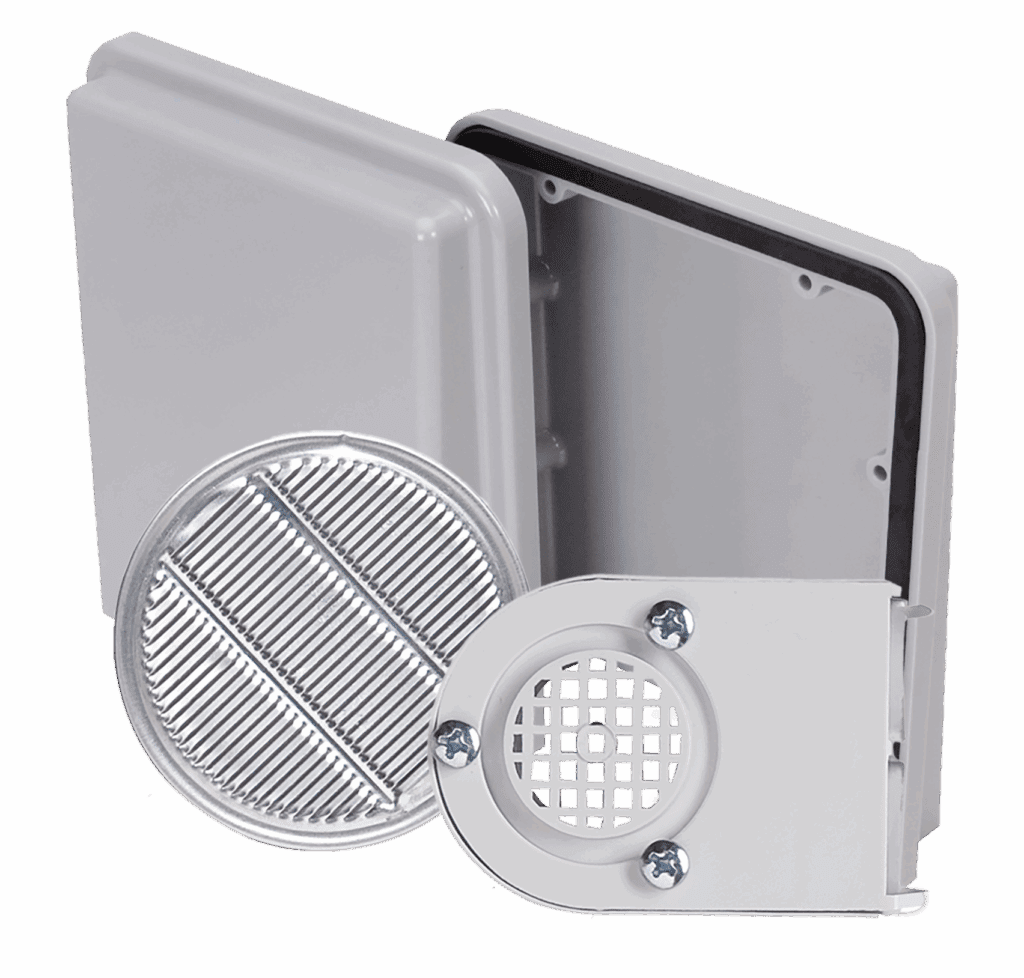

Selecting the Right Ventilation Accessories
The right ventilation system depends on more than the size of your electrical enclosure. Consider these key factors when making a selection:
- Thermal load: Understand how much heat is generated by the components, along with demand patterns.
- Environmental conditions: Account for external factors like rain, humidity, direct sunlight, dust, and corrosive agents.
- Mounting location: Freestanding, pole-mounted, indoor, or outdoor, each presents its own unique demands and challenges.
- Required NEMA/IP rating: Make sure that any accessories maintain or improve the enclosure’s rating.
Best Practices for Installing Ventilation Components
The right ventilation method won’t perform if it’s not installed correctly. Follow these best practices to maximize airflow and system reliability:
- Install vents at the top and bottom of the enclosure to facilitate natural convection, allowing hot air to rise and escape while drawing in cooler air.
- Use appropriate filters with active fans to protect internal components from dust and airborne debris.
- Ensure that added components don’t compromise the enclosure’s NEMA/IP rating.
- Pair breather vents with drains as necessary to manage pressure changes and moisture accumulation.
- Position vents in a way that doesn’t restrict access for maintenance or inspection.
- Always adhere to the manufacturer’s installation guidelines for performance and warranty compliance.
FAQs
Can ventilation be added to an existing electrical enclosure?
Yes. Many ventilation components, such as fans and vents, are available as aftermarket accessories. Be sure they are compatible with your enclosure’s material and rating, and ensure they’re UL-listed.
Do NEMA 4X enclosures require ventilation?
While NEMA 4X enclosures are sealed for water and corrosion resistance, they can still trap heat. Adding pressure-relief or breather vents helps regulate temperature without sacrificing protection.
What happens if an enclosure overheats?
Overheating can cause electronics to fail prematurely, reduce component lifespan, and increase the risk of fires. Proper temperature regulation is too critical to be an afterthought.
Should I use a fan or a passive vent?
Different applications and operating conditions require different ventilation methods. Fans are ideal for high-heat applications that require active cooling, while passive vents may be enough for installations with lower heat loads.
