Premium Line

H12106H IP66 Outdoor Rated Electronics Enclosure

Part Number:

H12106H

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 4X IP66

Mounting Feet

Screw Closure

Screw/Hinged

Opaque cover

Enclosure size: 12x10x6

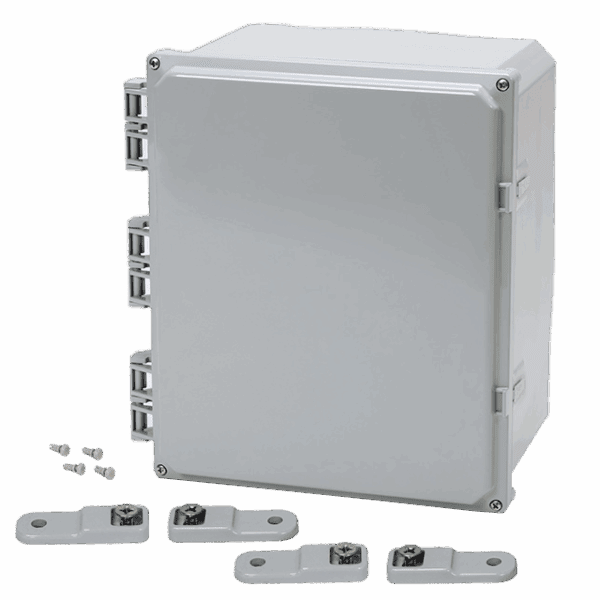

Traditional High Impact polycarbonate hinged enclosure with opaque cover and mounting feet (four screws included).

Protection Rating: UL/cUL NEMA TYPE 4X IP66

List Price:

$238.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-1210
    ABP-1210

    Aluminum Panel for 12" x 10" Enclosure

    Panel Size: 10.75 x 8.88 inches

    Includes Four Mounting Screws

    $ 58
  • SBP-1210
    SBP-1210

    Steel Back Panel for 12" x 10" Premium Enclosure
    Panel Dimensions: 10.88 x 8.88 inches
    Includes four mounting screws
    White Powder Coat Finish

    $ 106
  • PVCBP-1210
    PVCBP-1210

    PVC  Back Panel for Premium 12" x 10" Enclosure

    Panel Size: 10.75 x 8.88 inches

    Includes Four Mounting Screws

    $ 72

Swing Out Panels

  • ABP-1210-USOPK
    ABP-1210-USOPK

    Aluminum Swing Panel Kit for 12x10 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 115
  • ABP-1210USP
    ABP-1210USP

    Aluminum Panel for 12x10 Swing Kit

    $ 58
  • SBP-1210-USOPK
    SBP-1210-USOPK

    Steel Swing Panel Kit for 12" x 10" Premium Enclosure
    Panel Dimensions: 10.88 x 8.88 inches.
    Kit contains Steel Swing Panel and all hardware
    White Powder Coat Finish

    $ 204
  • SBP-1210USP
    SBP-1210USP

    Steel Swing Panel for 12" x 10" Premium Enclosure
    Panel Dimensions: 10.88 x 8.88 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 106
  • PVC-1210-USOPK
    PVC-1210-USOPK

    PVC swing panel kit for Impact 12" x 10" Enclosure

    Panel Size: 10.88 x 10.88 inches

    Kit contains PVC Swing Panel and all hardware

    $ 129

Replacement Lid

  • H1210CHO-RPL
    H1210CHO-RPL

    Opaque replacement cover for 12" x 10" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included

    $ 92
  • H1210CSO-RPL
    H1210CSO-RPL

    Opaque replacement cover for 10" x 8" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 84
  • X1210CHC-RPL
    X1210CHC-RPL

    Clear replacement cover for 12" x 10" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 94
  • X1210CSC-RPL
    X1210CSC-RPL

    Clear replacement cover for 12" x 10" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 93

Din Rails

  • DIN10
    DIN10

    DIN Rail Kit for 10"  Premium Enclosure (2 rails, 4 screws)

    $ 46

Pole Mount Kit

  • PMKG-210
    PMKG-210

    For 10" Wide Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 108
  • PMKG-310
    PMKG-310

    For 10" Wide Enclosure - 3" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 122
  • PMKG-410
    PMKG-410

    For 10" Wide Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 129
  • PMKG-1210
    PMKG-1210

    For 10" Wide Enclosure - 12" pole

    This kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 163

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 29
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 47
  • MFLK10
    MFLK10

    Mounting Flange Kit 10"

    Includes Four Mounting Screws

    $ 37

Vents & Fan Shroud Kits

  • FS-KIT-1
    FS-KIT-1

    Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)

    $ 47
  • FS-KIT-2
    FS-KIT-2

    Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)

    $ 89
  • FSFK1-G
    FSFK1-G

    Fan Shroud Vent Filter Kit Gray

    To make this a Forced Air solution look for KIT-FAN part numbers.

    $ 75
  • FSFK2-G
    FSFK2-G

    Fan Shroud Vent Filter Kit Gray - Set of two

    To make this a Forced Air solution look for KIT-FAN part numbers.



    $ 141
  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 28
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 30

Dimensions

(Mounting Feet/Flange, Hinge and Latch included in dimensions)

Approximate External Dimensions – 11.36 x 14.07 x 7.30 inches

Approximate Internal Dimensions – 10 x 12 x 6.38 inches

Wall Thickness – 0.18 inch

Weight – 4.15 lbs


General

Color – Light Gray with gloss finish

Material – Polycarbonate

Country of Origin – United States


Construction

Internal Mounting options – Brass inserts in corner bosses

External Mounting Style – Mounting Feet

Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket


3rd Party Ratings

UL-50/c-UL Listed (files#E229365, #E207562)

NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13

IP ratings – IP66


Mechanical and Thermal

Instrumented Dart Impact @ 73°F,  565 in-lb.

Falling Ball Impact @ 73° 900 in/lb. Test Spec. UL-746

Deflection Temperature @264 psi, 270 Deg. F, Test Spec. ASTM D648

Modulus of Elasticity 340 ksi, Test Spec. ASTM D790

Temperature Range, -40 to 265 Deg. F


Flammable/UV Ratings

Flame Rating Ð UL, 5VA. Test Spec. UL-94

Outdoor UV Exposure, F1. Test Spec UL

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H12106H PDF 12x10x6 Premium Specifications Integra Enclosures Install Sheet Premium UL Certification

2D & 3D Drawings

Sorry! The 2D & 3D Drawings are only available to approved users. Please login or register to access.
