Premium Line

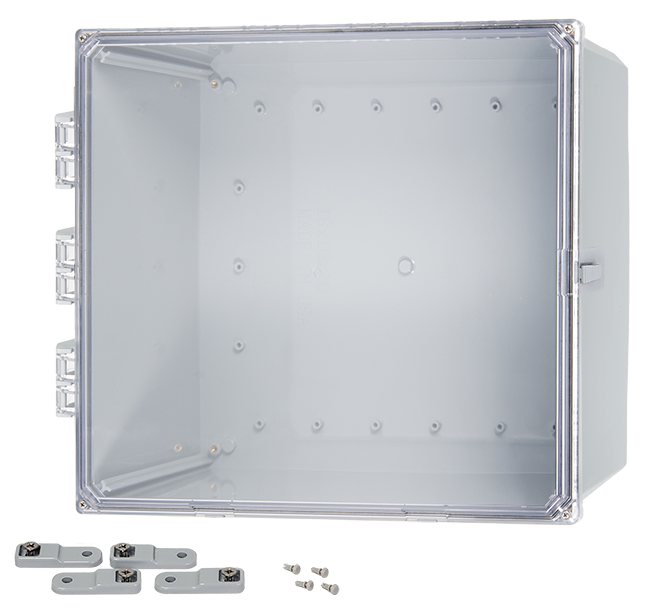

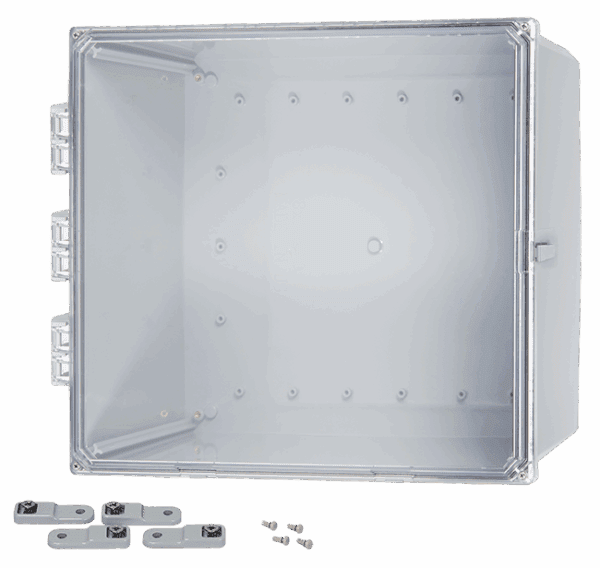

H161810HC IP66 Outdoor Rated Electronics Enclosure

Part Number:

H161810HC

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 4X IP66

Mounting Feet

Screw Closure

Screw/Hinged

Clear cover

Enclosure size: 16x18x10

Traditional High Impact polycarbonate hinged enclosure with clear cover. UL/cUL NEMA TYPE 4X IP66

List Price:

$460.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-1816
    ABP-1816

    Aluminum Panel for 18" x 16" Enclosure

    Panel Size: 16.75 x 14.88 inches

    Includes Four Mounting Screws

    $ 128
  • SBP-1816
    SBP-1816

    Steel Back Panel for 18" x 16" Premium Enclosure
    Panel Dimensions: 16.75 x 14.88 inches
    Includes four mounting screws
    White Powder Coat Finish

    $ 181
  • PVCBP-1816
    PVCBP-1816

    PVC Back Panel for Premium 18" x 16" Enclosure

    Panel Size: 16.75 x 14.88 inches

    Includes Four Mounting Screws

    $ 188

Swing Out Panels

  • ABP-1816-USOPK
    ABP-1816-USOPK

    Aluminum Swing Panel Kit for 18x16 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 185
  • ABP-1816USP
    ABP-1816USP

    Aluminum Panel for 18x16 Swing Kit

    $ 128
  • SBP-1816-USOPK
    SBP-1816-USOPK

    Steel Swing Panel Kit for 18" x 16" Premium Enclosure
    Panel Dimensions: 16.75 x 14.88 inches.
    Kit contains Steel Swing Panel and all hardware
    White Powder Coat Finish

    $ 277
  • SBP-1816USP
    SBP-1816USP

    Steel Swing Panel for 18" x 16" Premium Enclosure
    Panel Dimensions: 16.75 x 14.88 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 175
  • PVC-1816-USOPK
    PVC-1816-USOPK

    PVC swing panel kit 18" x 16" Enclosure

    Panel Size: 16.75 x 14.88 inches

    Kit contains PVC Swing Panel and all hardware

    $ 245

Replacement Lid

  • H1618CHO-RPL
    H1618CHO-RPL

    Opaque replacement cover for 16" x 18" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 178
  • X1618CHC-RPL
    X1618CHC-RPL

    Clear replacement cover for 16" x 18" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 185

Din Rails

  • DIN18
    DIN18

    DIN Rail Kit for 18"  Premium Enclosure (2 rails, 4 screws)

    $ 77

Pole Mount Kit

  • PMKG-218
    PMKG-218

    For 18" Wide Premium Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 128
  • PMKG-318
    PMKG-318

    For 18" Wide Premium Enclosure - 3" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 139
  • PMKG-418
    PMKG-418

    For 18" Wide Premium Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 160
  • PMKG-1218
    PMKG-1218

    For 18" Wide Premium Enclosure - 12" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 178

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 29
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 47
  • MFLK16
    MFLK16

    Mounting Flange Kit 16"

    Includes Four Mounting Screws

    $ 49

Vents & Fan Shroud Kits

  • FS-KIT-1
    FS-KIT-1

    Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)

    $ 47
  • FS-KIT-2
    FS-KIT-2

    Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)

    $ 89
  • FSFK1-G
    FSFK1-G

    Fan Shroud Vent Filter Kit Gray

    To make this a Forced Air solution look for KIT-FAN part numbers.

    $ 75
  • FSFK2-G
    FSFK2-G

    Fan Shroud Vent Filter Kit Gray - Set of two

    To make this a Forced Air solution look for KIT-FAN part numbers.



    $ 141
  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 28
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 30

Dimensions

(Mounting Feet/Flange, Hinge and Latch included in dimensions)

Approximate External Dimensions – 19.63 x 18.44 x 11.42 inches

Approximate Internal Dimensions – 18 x 16 x 10.36 inches

Wall Thickness – 0.23 inches

Weight – 13.59 lbs


General

Color – Light Gray with gloss finish

Material – Polycarbonate

Country of Origin – United States


Construction

Internal Mounting options – Brass inserts in corner bosses

External Mounting Style – Mounting Feet

Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket


3rd Party Ratings

UL-50/c-UL Listed (files#E229365, #E207562)

NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13

IP ratings – IP66


Mechanical and Thermal

Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)

Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)

Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)

Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)

Temperature Range = -40 to 265 °F


Flammable/UV Ratings

Flame Rating = UL, 5VA. (Test Spec. UL-94)

Outdoor UV Exposure = F1. (Test Spec UL)

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H161810H PDF Integra Enclosures Install Sheet Premium UL Certification
