Premium Line

H8084HC-6P IP68 Waterproof Rated Electronics Enclosure

Part Number:

H8084HC-6P

Polycarbonate enclosures, Premium Line

UL/cUL NEMA TYPE 6P IP68

8X8X4

Mounting Feet

Four Screws

Screw/Hinged

Clear cover

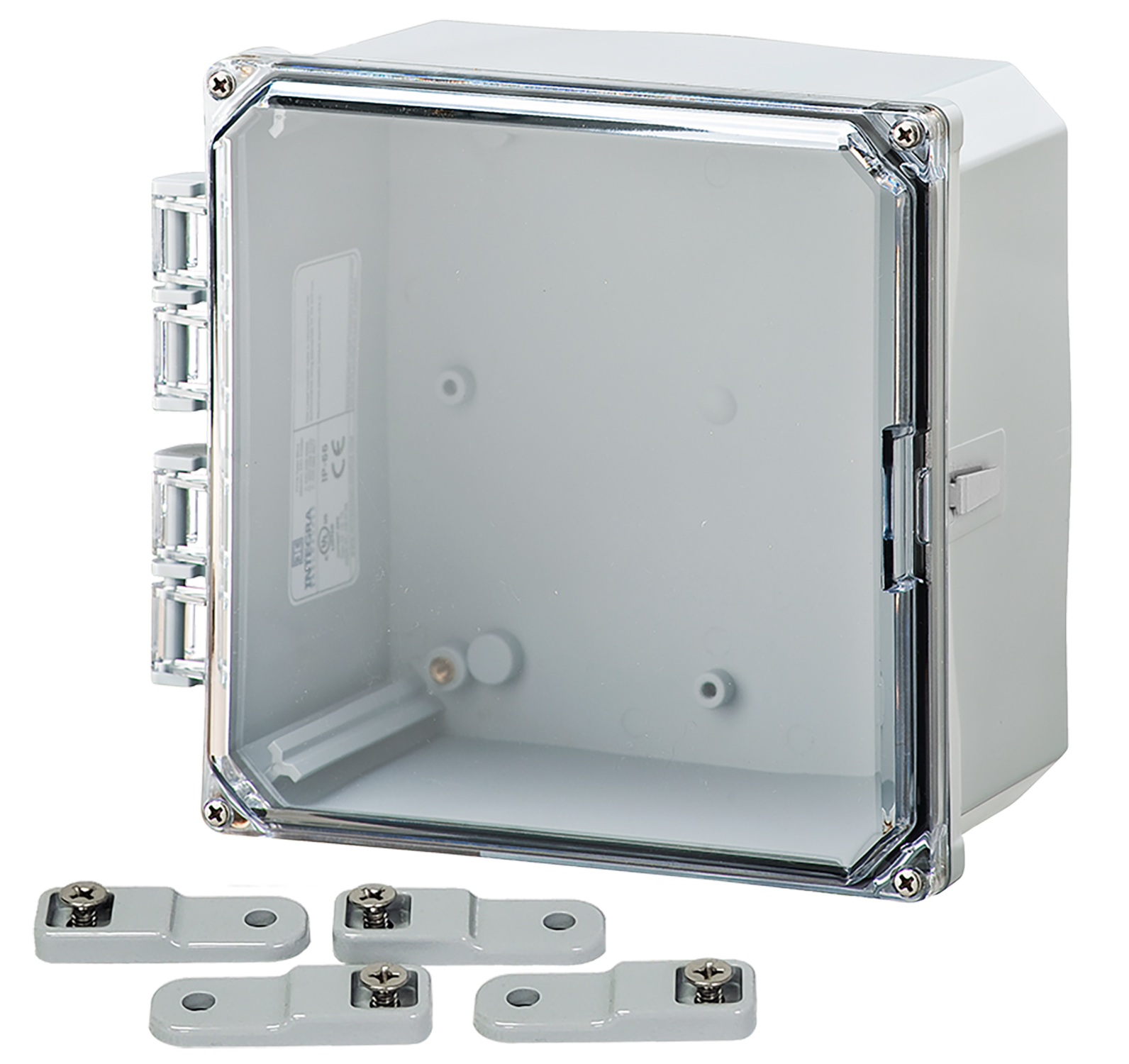

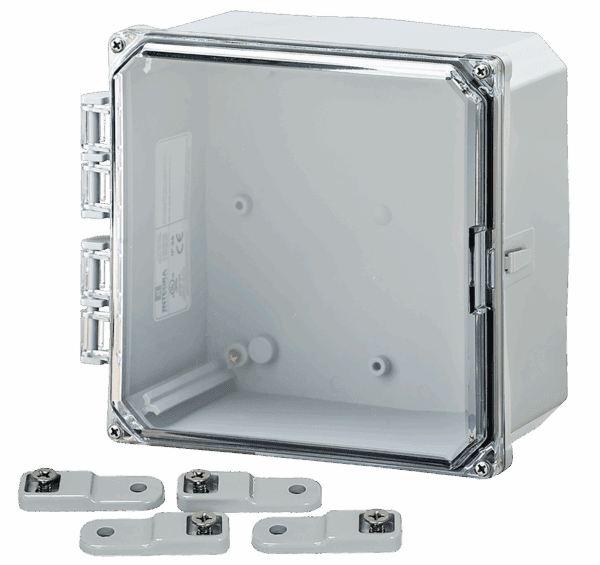

Traditional High Impact polycarbonate hinged enclosure with clear cover and mounting feet (four screws included).

Protection Rating: UL/cUL NEMA TYPE 6P IP68

List Price:

$188.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-88
    ABP-88

    Aluminum Panel for 8" x 8" Enclosure

    Panel Size: 6.75 x 6.75 inches

    Includes Four Mounting Screws

    $ 39.00
  • SBP-88
    SBP-88

    Steel Back Panel for 8" x 8" Premium Enclosure
    Panel Dimensions: 6.75 x 6.87inches
    Includes four mounting screws
    White Powder Coat Finish

    $ 76.00
  • PVCBP-88
    PVCBP-88

    PVC Back Panel for Premium 8" x 8" Enclosure.



    Panel Size: 6.75 x 6.88 inches



    Includes Four Mounting Screws

    $ 49.00

Swing Out Panels

  • ABP-88-USOPK
    ABP-88-USOPK

    Aluminum Swing Panel Kit for 8x8 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 94.00
  • ABP-88USP
    ABP-88USP

    Aluminum Panel for 8x8 Swing Kit

    $ 39.00
  • SBP-88-USOPK
    SBP-88-USOPK

    Steel Swing Panel Kit for 8" x 8" Premium Enclosure
    Panel Dimensions: 6.75 x 6.87 inches.
    Kit contains Steel Swing Panel and all harware
    White Powder Coat Finish

    $ 182.00
  • SBP-88USP
    SBP-88USP

    Steel Swing Panel for 8" x 8" Premium Enclosure
    Panel Dimensions: 6.75 x 6.87 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 76.00

Pole Mount Kit

  • PMKG-28
    PMKG-28

    For 8" Wide Premium Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 104.00
  • PMKG-38
    PMKG-38

    For 8" Wide Premium Enclosure - 3" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 117.00
  • PMKG-48
    PMKG-48

    For 8" Wide Premium Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 121.00
  • PMKG-128
    PMKG-128

    For 8" Wide Premium Enclosure - 12" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 152.00

Replacement Lid

  • H88CHO-RPL
    H88CHO-RPL

    Opaque replacement cover for 8" x 8" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 57.00
  • H88CSO-RPL
    H88CSO-RPL

    Opaque replacement cover for 8" x 8" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 57.00
  • X88CHC-RPL
    X88CHC-RPL

    Clear replacement cover for 8" x 8" Premium Enclosure with standard hinge. Gasket installed and cover screw kit included.

    $ 59.00
  • X88CSC-RPL
    X88CSC-RPL

    Clear replacement cover for 8" x 8" Premium Enclosure with screw cover. Gasket installed and cover screw kit included.

    $ 58.00

Din Rails

  • DIN8
    DIN8

    DIN Rail Kit for 8" Premium Enclosure (2 rails, 4 screws)

    $ 42.00

Mounting Feet & Flange Kits

  • MFK-G
    MFK-G

    Mounting Feet Kit - Premium Line-Gray

    Includes Four Mounting Screws

    $ 28.00
  • MFKSS
    MFKSS

    Mounting Feet Kit - Stainless Steel

    Includes Four Feet and Mounting Hardware

    $ 45.00
  • MFLK8
    MFLK8

    Mounting Flange Kit 8"

    Includes Four Mounting Screws

    $ 31.00

Vents & Fan Shroud Kits

  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 27.00
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 29.00

Mechanical and Thermal

Instrumented Dart Impact @ 73°F,  565 in-lb.

Falling Ball Impact @ 73° 900 in/lb. Test Spec. UL-746

Deflection Temperature @264 psi, 270 Deg. F, Test Spec. ASTM D648

Modulus of Elasticity 340 ksi, Test Spec. ASTM D790

Temperature Range, -40 to 265 Deg. F


Flammable/UV Ratings

Flame Rating Ð UL, 5VA. Test Spec. UL-94

Outdoor UV Exposure, F1. Test Spec UL


3rd Party Approvals

UL-50/c-UL Listed (files#E229365, #E207562)

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

H8084H PDF 8x8x4 Premium Specifications Integra Enclosures Install Sheet Premium UL Certification

2D & 3D Drawings

Sorry! The 2D & 3D Drawings are only avaiable to approved users. Please login or register to access.
