Polycarbonate enclosures

P10084LPC IP68 Waterproof Rated Electronics Enclosure

Part Number:

P10084LPC

Impact line, Polycarbonate enclosures

UL/cUL NEMA TYPE 6P IP68

Integrated Mounting Flange

Integrated Locking Latch

Low Profile Hinge

Clear cover

Enclosure size: 10x8x4

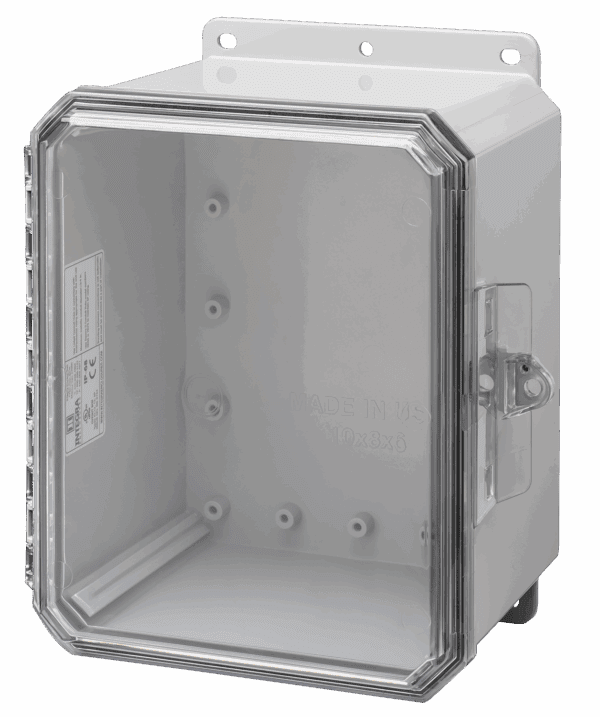

10″ x 8″ x 4″ high impact polycarbonate enclosure with low-profile continuous hinge and clear cover. Integrated mounting flanges and locking latch are molded into the enclosure for ease of installation and less hardware required.

Protection Rating: UL/cUL NEMA TYPE 6P IP68

*Low Profile models require a minimum order quantity. Contact factory for details.

List Price:

$195.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-108-IMP
    ABP-108-IMP

    Aluminum Back Panel for Impact 10"x8" Enclosure

    Panel Size: 8.75 x 6.88 inches

    Includes Four Mounting Screws

    $ 50
  • SBP-108-IMP
    SBP-108-IMP

    Steel Back Panel for 10" x 8" Impact Enclosure
    Panel Dimensions: 8.75 x 6.88 inches.
    Includes Four Mounting Screws
    White Powder Coat Finish

    $ 87
  • PVCBP108-IMP
    PVCBP108-IMP

    PVC Back Panel for Impact 10"x8" Enclosure.

    Panel Dimensions: 8.75 x 6.88 inches.

    Includes Four Mounting Screws

    $ 62

Swing Out Panels

  • ABP-108USP
    ABP-108USP

    Aluminum Panel for 10x8 Swing Kit

    $ 50
  • ABP-108-USOPK
    ABP-108-USOPK

    Aluminum Swing Panel Kit for 10x8 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 107
  • SBP-108USP
    SBP-108USP

    Steel Swing Panel for 10" x 8" Premium Enclosure
    Panel Dimensions: 8.75 x 6.88 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 83
  • SBP-108-USOPK
    SBP-108-USOPK

    Steel Swing Panel Kit for 10" x 8" Premium Enclosure
    Panel Dimensions: 8.75 x 6.88 inches.
    Kit contains Steel Swing Panel and all hardware
    White Powder Coat Finish

    $ 198

Replacement Lid

  • P108CLPC-RPL
    P108CLPC-RPL

    Clear replacement cover for 10" x 8" Impact Enclosure with low profile hinge and integrated latch. Gasket installed

    $ 78

Din Rails

  • DIN8-IMP
    DIN8-IMP

    DIN Rail Kit for 8" Impact Enclosure (2 rails, 4 self tapping screws)

    $ 44

Pole Mount Kit

  • PMKG-128-IMP
    PMKG-128-IMP

    For 8" Wide Impact Enclosure - 10-12" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 158
  • PMKG-2346-IMP
    PMKG-2346-IMP

    Universal Pole Mount Kit for Impact Line - 2" to 6" pole, Zip Tie Straps and mounting hardware

    $ 53
  • PMKG-28-IMP
    PMKG-28-IMP

    For 8" Wide Impact Enclosure - 2" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole.

    $ 108
  • PMKG-38-IMP
    PMKG-38-IMP

    For 8" Wide Impact Enclosure - 3" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 122
  • PMKG-48-IMP
    PMKG-48-IMP

    For 8" Wide Impact Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 126

Hardware

  • SP-10I
    SP-10I

    Screw Pack (for Mounting to Bosses, 10pcs)

    $ 25

Dimensions

(Mounting Feet/Flange, Hinge and Latch included in dimensions)

Approximate External Dimensions – 9.84 x 11.69 x 5.01 inches

Approximate Internal Dimensions – 8 x 10 x 4.23 inches

Wall Thickness – 0.16 inches

Weight – 2.70 lbs


General

Color – Light Gray with gloss finish

Material – Polycarbonate

Country of Origin – United States


Construction

Internal Mounting options – Bosses on rear wall and lid of opaque covers

External Mounting Style – Integrated Mounting Flange

Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket


3rd Party Ratings

UL-50/c-UL Listed (file #E207562)

NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 6, 6P, 12, 13

IP ratings – IP66, IP68


Mechanical and Thermal

Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)

Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)

Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)

Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)

Temperature Range = -40 to 265 °F


Flammable/UV Ratings

Flame Rating = UL, 5VA. (Test Spec. UL-94)

Outdoor UV Exposure = F1. (Test Spec UL)

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

P10084LP PDF 10x8x4 Impact Specifications Impact UL Certification

2D & 3D Drawings

Sorry! The 2D & 3D Drawings are only available to approved users. Please login or register to access.
