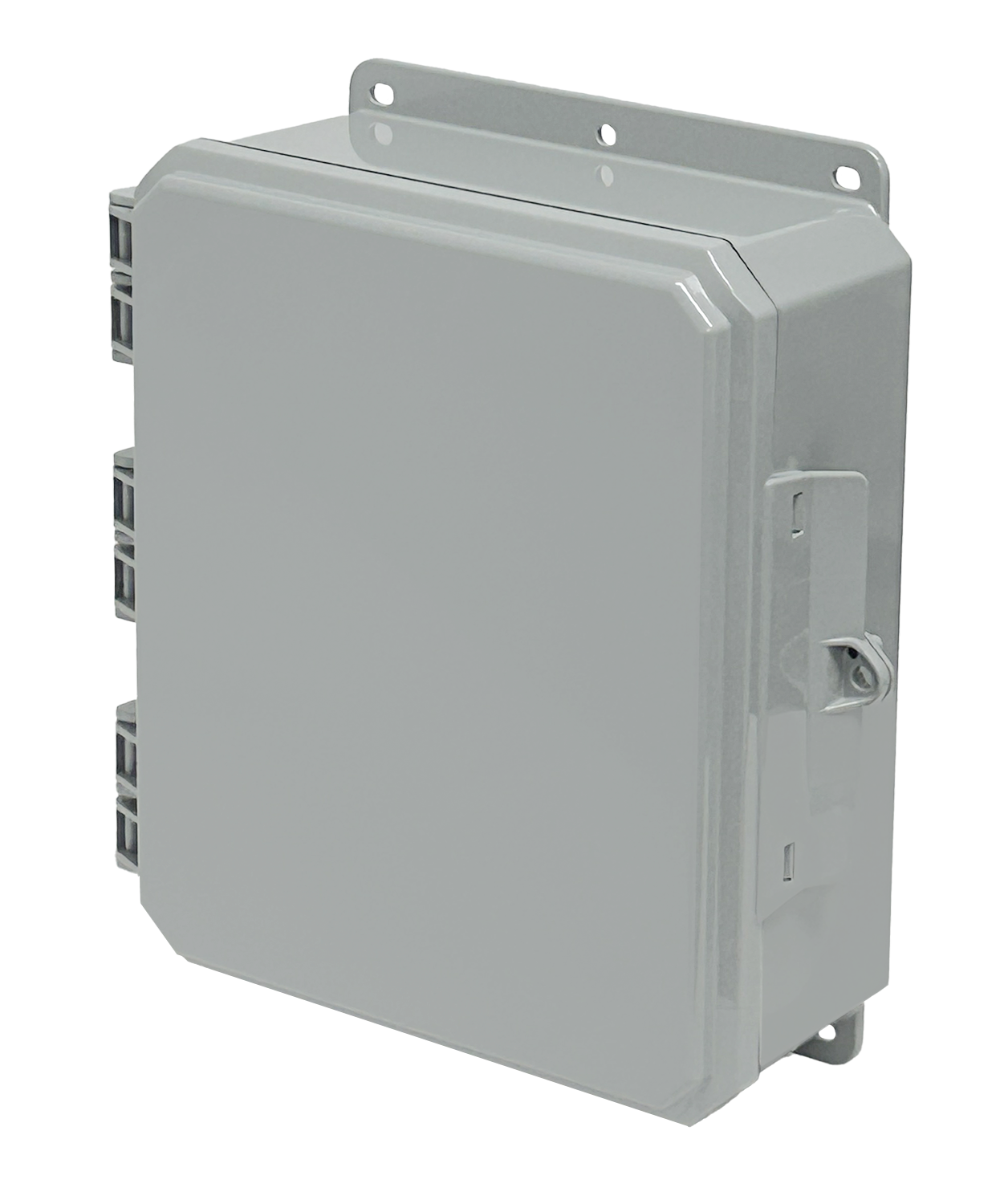

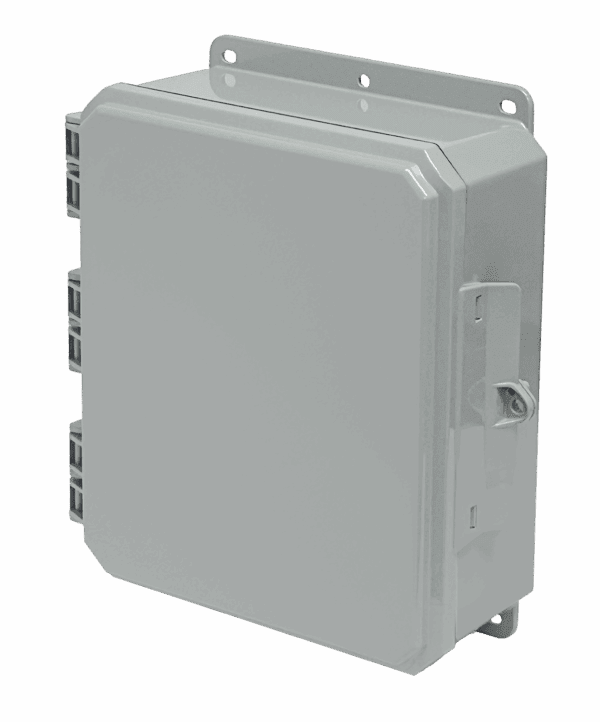

P12104 IP66 Outdoor Rated Electronics Enclosure

Part Number:

P12104

Impact line, Polycarbonate enclosures

UL/cUL NEMA TYPE 4X IP66

Integrated Mounting Flange

Integrated Locking Latch

Standard Hinge

Opaque cover

Enclosure size: 12x10x4

Impact standard: 12″ x 10″ x 4″ high impact polycarbonate enclosure with hinged cover, gray. Integrated locking latch and mounting flanges provide a 100% metal-free enclosure with no hardware required.

List Price:

$216.00

Call factory for OEM and quantity discounts

QTY:

*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*

If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as

Accessories
Product Specifications
Downloads

Mounting Panels

  • ABP-1210-IMP
    ABP-1210-IMP

    Aluminum Back Panel for Impact 12" x 10" Enclosure

    Panel Size: 10.75 x 8.88 inches

    Includes Four Mounting Screws

    $ 58
  • SBP-1210-IMP
    SBP-1210-IMP

    Steel Back Panel for 12" x 10" Impact Enclosure
    Panel Dimensions: 10.75 x 8.88 inches.
    Includes Four Mounting Screws
    White Powder Coat Finish

    $ 106
  • PVCBP1210-IMP
    PVCBP1210-IMP

    PVC Back Panel for Impact 12" x 10" Enclosure

    Panel Size: 10.75 x 8.88 inches

    Includes Four Mounting Screws

    $ 72

Swing Out Panels

  • ABP-1210-USOPK
    ABP-1210-USOPK

    Aluminum Swing Panel Kit for 12x10 enclosure

    Kit Contains Aluminum Swing Panel and all hardware

    $ 115
  • ABP-1210USP
    ABP-1210USP

    Aluminum Panel for 12x10 Swing Kit

    $ 58
  • SBP-1210-USOPK
    SBP-1210-USOPK

    Steel Swing Panel Kit for 12" x 10" Premium Enclosure
    Panel Dimensions: 10.88 x 8.88 inches.
    Kit contains Steel Swing Panel and all hardware
    White Powder Coat Finish

    $ 204
  • SBP-1210USP
    SBP-1210USP

    Steel Swing Panel for 12" x 10" Premium Enclosure
    Panel Dimensions: 10.88 x 8.88 inches.
    Pre-Drilled
    White Powder Coat Finish

    $ 106

Replacement Lid

  • P1210CHC-RPL
    P1210CHC-RPL

    Clear replacement cover for 12" x 10" Impact Enclosure with standard hinge and integrated latch. Gasket installed

    $ 118
  • P1210CHO-RPL
    P1210CHO-RPL

    Opaque replacement cover for 12" x 10" Impact Enclosure with standard hinge and integrated latch. Gasket installed

    $ 103
  • P1210CHOLL-RPL
    P1210CHOLL-RPL

    Opaque replacement cover for 12" x 10" Impact Enclosure with standard hinge and hasp latch. Gasket installed (Latch not included)

    $ 109
  • P1210CHCLL-RPL
    P1210CHCLL-RPL

    Clear replacement cover for 12" x 10" Impact Enclosure with standard hinge and hasp latch. Gasket installed (Latch not included)

    $ 118

Din Rails

  • DIN10-IMP
    DIN10-IMP

    DIN Rail Kit for 10" Impact Enclosure (2 rails, 4 self tapping screws)

    $ 46

Pole Mount Kit

  • PMKG-210
    PMKG-210

    For 10" Wide Enclosure - 2" pole

    Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 108
  • PMKG-310
    PMKG-310

    For 10" Wide Enclosure - 3" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 122
  • PMKG-410
    PMKG-410

    For 10" Wide Enclosure - 4" pole

    These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 129
  • PMKG-1210
    PMKG-1210

    For 10" Wide Enclosure - 12" pole

    This kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole

    $ 163

Vents & Fan Shroud Kits

  • FS-KIT-1
    FS-KIT-1

    Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)

    $ 47
  • FS-KIT-2
    FS-KIT-2

    Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)

    $ 89
  • FSFK1-G
    FSFK1-G

    Fan Shroud Vent Filter Kit Gray

    To make this a Forced Air solution look for KIT-FAN part numbers.

    $ 75
  • FSFK2-G
    FSFK2-G

    Fan Shroud Vent Filter Kit Gray - Set of two

    To make this a Forced Air solution look for KIT-FAN part numbers.



    $ 141
  • VENT-2
    VENT-2

    Outdoor Vent - Labyrinth Non-Metallic Vent

    $ 28
  • VENT-3
    VENT-3

    Aluminum Vent 3" - Louvered Aluminum Vent

    $ 30

Dimensions

(Mounting Feet/Flange, Hinge and Latch included in dimensions)

Approximate External Dimensions – 12.27 x 13.69 x 5.03 inches

Approximate Internal Dimensions – 10 x 12 x 3.93 inches

Wall Thickness – 0.16 inches

Weight – 3.52 lbs


General

Color – Light Gray with gloss finish

Material – Polycarbonate

Country of Origin – United States


Construction

Internal Mounting options – Bosses on rear wall and lid of opaque covers

External Mounting Style – Integrated Mounting Flange

Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket


3rd Party Ratings

UL-50/c-UL Listed (file #E207562)

NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13

IP ratings – IP66


Mechanical and Thermal

Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)

Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)

Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)

Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)

Temperature Range = -40 to 265 °F


Flammable/UV Ratings

Flame Rating = UL, 5VA. (Test Spec. UL-94)

Outdoor UV Exposure = F1. (Test Spec UL)

If you need a different version of a drawing or have any difficulty viewing it, please contact the factory

Product Documents

P12104 PDF 12x10x4 Impact Specifications Impact UL Certification Integra Enclosures Install Sheet
