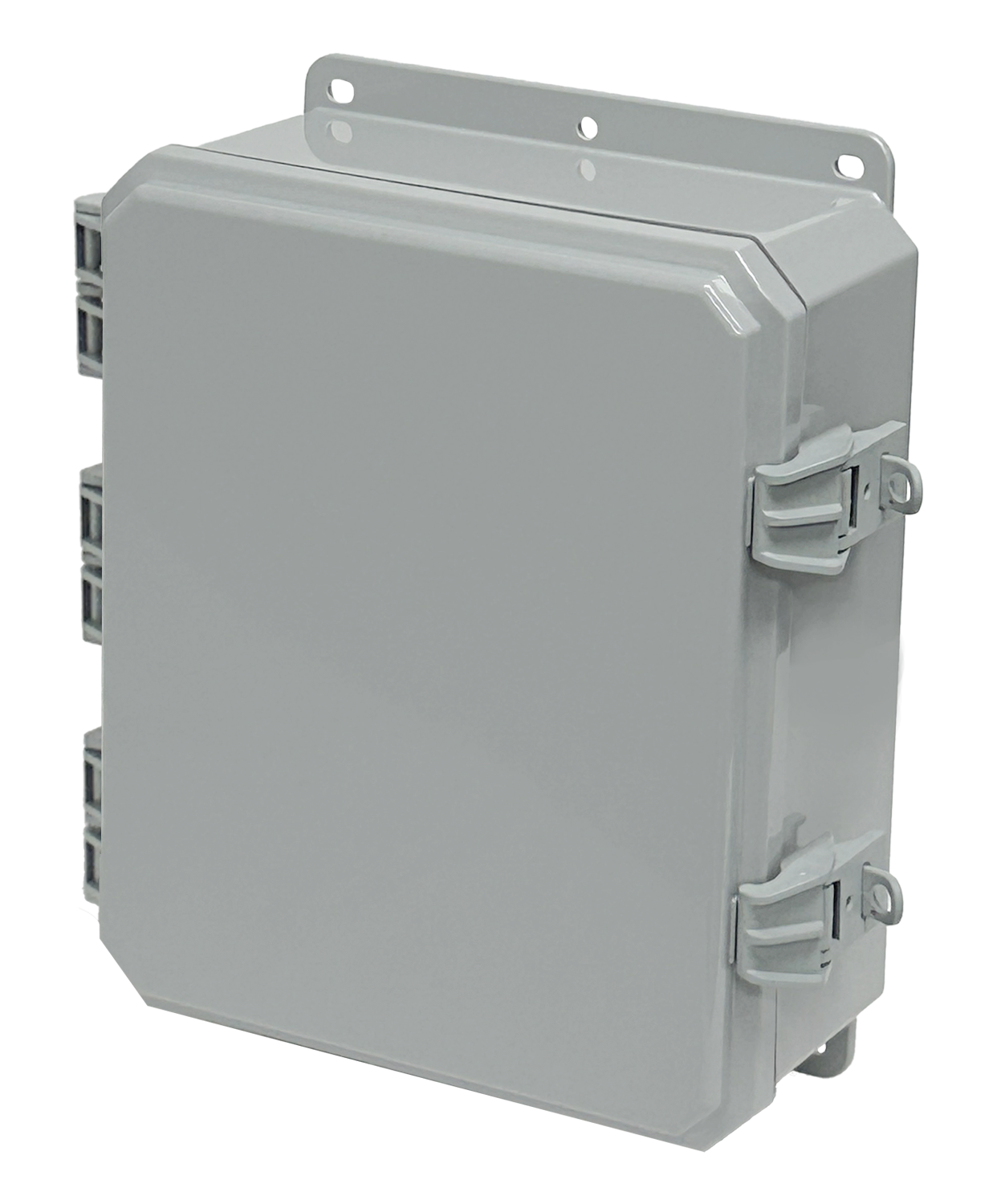

P12104NL IP66 Outdoor Rated Electronics Enclosure
● Impact line, Polycarbonate enclosures
● UL/cUL NEMA TYPE 4X IP66
● Integrated Mounting Flange
● Non-Metallic Locking Latch
● Standard Hinge
● Opaque cover
● Enclosure size: 12x10x4
$249.00
Call factory for OEM and quantity discounts
*TAX EXEMPT STATUS REQUIRED TO ORDER DIRECT*
If you don’t have a Tax Exempt or Resale Certificate, you can order from an online distributor, such as
Aluminum Back Panel for Impact 12" x 10" Enclosure
Panel Size: 10.75 x 8.88 inches
Includes Four Mounting Screws
Steel Back Panel for 12" x 10" Impact Enclosure
Panel Dimensions: 10.75 x 8.88 inches.
Includes Four Mounting Screws
White Powder Coat Finish
PVC Back Panel for Impact 12" x 10" Enclosure
Panel Size: 10.75 x 8.88 inches
Includes Four Mounting Screws
Aluminum Swing Panel Kit for 12x10 enclosure
Kit Contains Aluminum Swing Panel and all hardware
Aluminum Panel for 12x10 Swing Kit
Steel Swing Panel Kit for 12" x 10" Premium Enclosure
Panel Dimensions: 10.88 x 8.88 inches.
Kit contains Steel Swing Panel and all hardware
White Powder Coat Finish
Steel Swing Panel for 12" x 10" Premium Enclosure
Panel Dimensions: 10.88 x 8.88 inches.
Pre-Drilled
White Powder Coat Finish
Opaque replacement cover for 12" x 10" Impact Enclosure with standard hinge and integrated latch. Gasket installed
Clear replacement cover for 12" x 10" Impact Enclosure with standard hinge and integrated latch. Gasket installed
Opaque replacement cover for 12" x 10" Impact Enclosure with standard hinge and hasp latch. Gasket installed (Latch not included)
Clear replacement cover for 12" x 10" Impact Enclosure with standard hinge and hasp latch. Gasket installed (Latch not included)
DIN Rail Kit for 10" Premium Enclosure (2 rails, 4 screws)
For 10" Wide Enclosure - 2" pole
Kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 10" Wide Enclosure - 3" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 10" Wide Enclosure - 4" pole
These kits contain all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
For 10" Wide Enclosure - 12" pole
This kit contains all galvanized steel components and zinc- plated steel fasteners, designed to securely fasten your Integra enclosure to a metal pole
Fan Shroud Kit - One Piece (Includes gasketed shroud and mounting hardware)
Fan Shroud Kit - Set of two (Includes gasketed covers and mounting hardware)
Fan Shroud Vent Filter Kit Gray
To make this a Forced Air solution look for KIT-FAN part numbers.
Fan Shroud Vent Filter Kit Gray - Set of two
To make this a Forced Air solution look for KIT-FAN part numbers.
Outdoor Vent - Labyrinth Non-Metallic Vent
Aluminum Vent 3" - Louvered Aluminum Vent
Dimensions
(Mounting Feet/Flange, Hinge and Latch included in dimensions)
Approximate External Dimensions – 12.52 x 13.69 x 5.03 inches
Approximate Internal Dimensions – 10 x 12 x 3.93 inches
Wall Thickness – 0.16 inches
Weight – 3.67 lbs
General
Color – Light Gray with gloss finish
Material – Polycarbonate
Country of Origin – United States
Construction
Internal Mounting options – Bosses on rear wall and lid of opaque covers
External Mounting Style – Integrated Mounting Flange
Gasket type/ material – Hydro-Phobic Urethane peel and stick gasket
3rd Party Ratings
UL-50/c-UL Listed (file #E207562)
NEMA ratings – NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 4, 4X, 5, 12, 13
IP ratings – IP66
Mechanical and Thermal
Instrumented Dart Impact = 565 in-lb. (Tested at 73°F)
Falling Ball Impact = 900 in/lb. (Test Spec. UL-746, at 73°F)
Deflection Temperature = @264 psi (Test Spec. ASTM D648 270°F)
Modulus of Elasticity = 340 ksi (Test Spec. ASTM D790)
Temperature Range = -40 to 265 °F
Flammable/UV Ratings
Flame Rating = UL, 5VA. (Test Spec. UL-94)
Outdoor UV Exposure = F1. (Test Spec UL)
Our wide range of products and unmatched manufacturing capabilities help us create the best enclosure solution for you.
